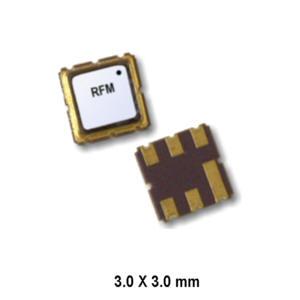

SF2053E

Frequency Range :
Voltage Rating :
Bandwidth :
Package / Case :
Impedance : 50 Ohms
Termination Style : SMD/SMT
Packaging : Reel
Product : SAW Filters
Frequency : 915 MHz
Operating Temperature Range : - 20 C to + 60


Features:

• Low Loss Filter for 915 MHz Front End
• Complies with Directive 2002/95/EC (RoHS)




Specifications

Rating	Value	Units
Input Power Level	20	dBm
DC Voltage	0	V
Operating Temperature Range	+20 to +60	°C
Storage Temperature Range	-40 to +85	°C

Characteristic Symbol Minimum Typical Maximum Units Center Frequency FC 915 MHz Insertion Loss within 908.75 ~ 921.25 MHz IL 3.0 5 dB Amplitude Ripple (p-p) within 908.75 ~ 921.25 MHz 1.0 1.5 dB Attenuation Reference level from Min IL 850 - 902 MHz 18 dB 928 - 940 MHz 14 dB 800 - 850 MHz 35 44 dB 940 - 1000 MHz 33 46 dB Temperature Coefficient of Frequency TCF -42 ppm/K Source Impedance ZS 50 Ohm Load Impedance ZL 50 Ohm




Description

Low Loss Filter SF2053E for 915 MHz Front End Complies with Directive 2002/95/EC (RoHS)
