MFG:Infineon Technologies (VA) Category:Discrete Semiconductor Products Package Cooled:Original D/C:07+
SPB11N60S5E3045A, SPB12N50C3, SPB12-R80 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies (VA)
Package Cooled: Original
D/C: 07+

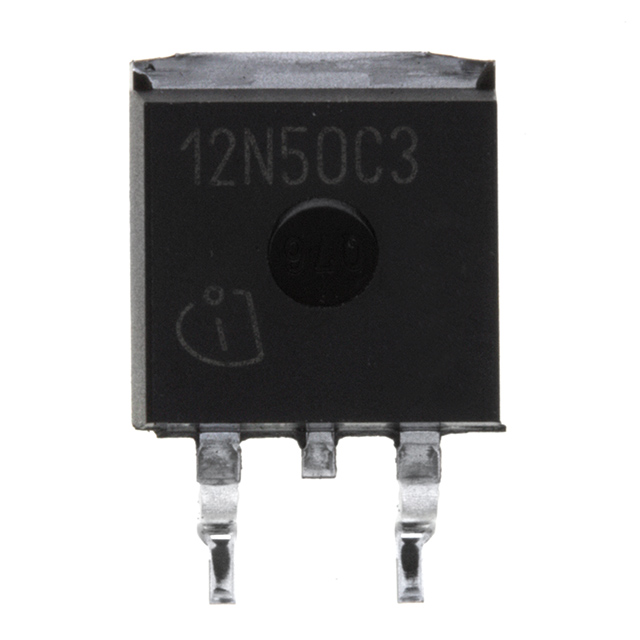

Description: MOSFET N-CH 560V 11.6A TO-263
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SPB02N60
File Size: 121401 KB
Manufacturer: Siemens Semiconductor Group
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB12N50C3
File Size: 374517 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPB02N60
File Size: 121401 KB
Manufacturer: Siemens Semiconductor Group
Download : Click here to Download
| Technical/Catalog Information | SPB12N50C3 |
| Vendor | Infineon Technologies (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 560V |
| Current - Continuous Drain (Id) @ 25° C | 11.6A |
| Rds On (Max) @ Id, Vgs | 380 mOhm @ 7A, 10V |
| Input Capacitance (Ciss) @ Vds | 1200pF @ 25V |
| Power - Max | 125W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 49nC @ 10V |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPB12N50C3 SPB12N50C3 SPB12N50C3INDKR ND SPB12N50C3INDKRND SPB12N50C3INDKR |
| Parameter | Symbol | Value | Unit | |
| SPP_B_I | SPA | |||
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 11.6 7 |
11.61) 71) |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 34.8 | 34.8 | A |
| Avalanche energy, single pulse ID=2.5A, VDD=50V |
EAS | 340 | 340 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax2) ID=11.6A, VDD=50V |
EAR | 0.6 | 0.6 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 11.6 | 11.6 | A |
| Gate source voltage | VGS | ±20 | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 125 | 33 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C | |
| Drain Source voltage slope VDS = 400 V, ID = 11.6 A, Tj = 125 °C |
dv/dt | 50 | V/ns | |
