SS1528H, SS-15A22, SS16

Table of contents:
Info of SS1528H
Info of SS-15A22
Info of SS16

SS1528H, SS-15A22, SS16 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:CAN3 D/C:original stok

SS1528H, SS-15A22, SS16 Datasheet download

Five Points

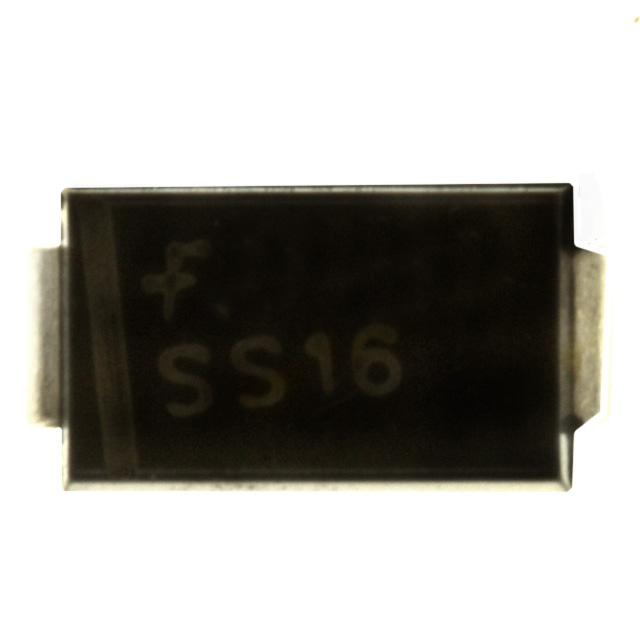

Part Number: SS16

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: CAN3

D/C: original stok

Description: DIODE SCHOTTKY 1A 60V SMA

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SS16 Parameters

Technical/Catalog Information	SS16
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	700mV @ 1A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	200A @ 60V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Packaging	Digi-Reel?
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SS16 SS16 SS16FSDKR ND SS16FSDKRND SS16FSDKR

SS16 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
SS16	Full Production	RoHS Compliant	$0.122	DO-214AC(SMA)	2	TAPE REEL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

SS16 Features

· Schottky Barrier Chip
· Ideally Suited for Automatic Assembly
· Low Power Loss, High Efficiency
· Surge Overload Rating to 30A Peak
· For Use in Low Voltage Application
· Guard Ring Die Construction
· Plastic Case Material has UL Flammability Classification Rating 94V-O
