TLE2064, TLE2064AC, TLE2064ACDG4

Table of contents:
Info of TLE2064
Info of TLE2064AC
Info of TLE2064ACDG4

TLE2064, TLE2064AC, TLE2064ACDG4 Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SMD D/C:00+

TLE2064, TLE2064AC, TLE2064ACDG4 Datasheet download

Five Points

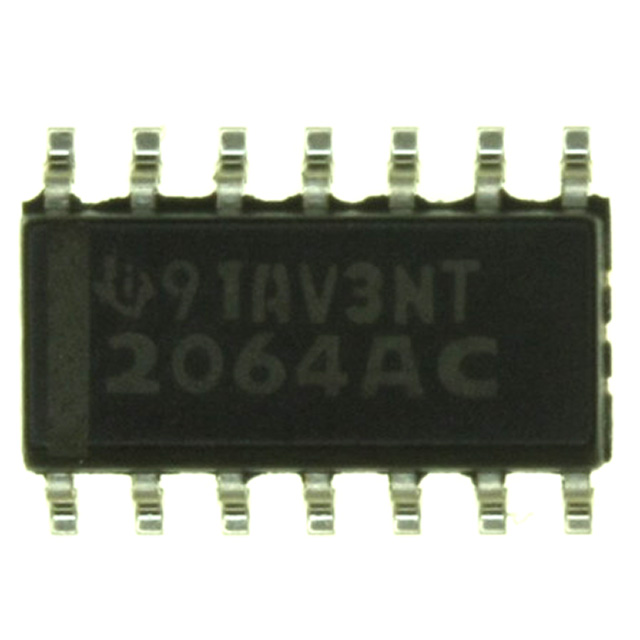

Part Number: TLE2064ACDG4

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: SMD

D/C: 00+

Description: IC OPAMP JFET 2MHZ QUAD 14SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TLE2064 General Description

The TLE206x series of low-power JFET-input operational amplifiers doubles the bandwidth of the earlier generation TL06x and TL03x BiFET families without significantly increasing power consumption. Texas Instruments Excalibur process also delivers a lower noise floor than the TL06x and TL03x. On-chip zener trimming of offset voltage yields precision grades for dc-coupled applications. The TL206x devices are pin-compatible with other Texas Instruments BiFETs; they can be used to double the bandwidth of TL06x and TL03x circuits or to reduce power consumption of TL05x, TL07x, and TL08x circuits by nearly 90%.
BiFET operational amplifiers offer the inherently-higher input impedance of the JFET-input transistors, without sacrificing the output drive associated with bipolar amplifiers. This makes them better suited for interfacing with high-impedance sensors or low-level ac signals. They also feature inherently better ac response than bipolar or CMOS devices having comparable power consumption. The TLE206x family features a high-output-drive circuit capable of driving 100-? loads at supplies as low as ±5 V. This makes them uniquely suited for driving transformer loads in modems and other applications requiring good ac characteristics, low power, and high output drive.
Because BiFET operational amplifiers are designed for use with dual power supplies, care must be taken to observe common-mode input voltage limits and output swing when operating from a single supply. DC biasing of the input signal is required and loads should be terminated to a virtual ground node at mid-supply. Texas Instruments TLE2426 integrated virtual ground generator is useful when operating BiFET amplifiers from single supplies.
The TLE206x are fully specified at ±15 V and ±5 V. For operation in low-voltage and/or single-supply systems, Texas Instruments LinCMOS families of oper ational amplifiers (TLC- and TLV-prefixes) are recommended. When moving from BiFET to CMOS amplifiers, particular attention should be paid to slew rate and bandwidth requirements and output loading. The Texas Instruments TLV2432 and TLV2442 CMOS operational amplifiers are excellent choices to con sider.

TLE2064 Maximum Ratings

Supply voltage, V _CC+(see Note 1) . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 19 V
Supply voltage, V _CC-- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -19 V
Differential input voltage, V _ID (see Note 2) . . . . . .. . . . . . . . . . . . . . . . . . ±38 V
Input voltage range, V_I
(any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±V _CC
Input current, I
(each input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .  . . .±1 mAI
Output current, I _O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±80 mA
Total current into V _CC+ . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . .  80 mA
Total current out of VCC- . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -80 mA
Duration of short-circuit current at (or below) 25°C (see Note 3)   . . . . .unlimited
Package thermal impedance,
(see Notes 4 and 5): D _JApackage (8-pin) . . . . . . . . . . . . . . . . . . . . 97.1°C/W
D package (14-pin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .86.2°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .. . . . . . . . . . . . 79.7°C/W
P package   . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . .. . . . . . . . . . . . 84.6°C/W.
PW package . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .. . . . . . . . . . . . . . 113°C/W
Package thermal impedance, _JC(see Notes 4 and 5):
FK package . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .. . . . . . . . . . . . . .  5.6°C/W
J package . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . .15.1°C/W
JG package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.5°C/W
U package   . . . . . . . . . . . . . . . . . . . . . . . . . 14.7°C/W
W package . . . . . . . . . . . . . . . . . . . . . . . . . . . 10°C/W
Operating free-air temperature range, T_A: C suffix   . . . . . . . . . . . . . . 0°C to 70°C.

I suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . .. . . . .. -40°C to 85°C
M suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . . . . . . . . .-55°C to 125°C
Storage temperature range   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to 150°C

Case temperature for 60 seconds: FK package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, P, or PW package . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG, U, or W package . . . . . . . . . . . . 300°C

TLE2064 Connection Diagram

TLE2064ACDG4 Parameters

Technical/Catalog Information	TLE2064ACDG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	J-FET
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Slew Rate	3.4 V/s
Gain Bandwidth Product	2MHz
Current - Supply	1.25mA
Current - Output / Channel	80mA
Voltage - Supply, Single/Dual (±)	7 V ~ 36 V, ±3.5 V ~ 18 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	4pA
Operating Temperature	0°C ~ 70°C
Voltage - Input Offset	900V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLE2064ACDG4 TLE2064ACDG4
