TLE 4203

Features: • Integrated free-wheeling diodes• Outputs short-circuit proof to VS and ground• Thermal overload protection• Blocking of the output stages upon undervoltage• Final push-pull stage free of cross-overPinoutSpecifications Parameter Symbol Limit Va...

product image

TLE 4203 Picture
See larger image
SeekIC No. : 004520773 Detail

TLE 4203: Features: • Integrated free-wheeling diodes• Outputs short-circuit proof to VS and ground• Thermal overload protection• Blocking of the output stages upon undervoltage•...

TLE 4203 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4203
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Integrated free-wheeling diodes
• Outputs short-circuit proof to VS and ground
• Thermal overload protection
• Blocking of the output stages upon undervoltage
• Final push-pull stage free of cross-over

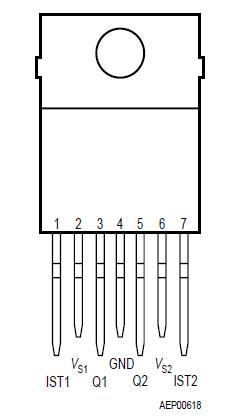

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
min.
max.
Supply voltage
VS
0.5
45
V
Logic input voltages
VI 1, 2
45
45
V
Supply current TC 85 °C IS 12 12
A
Output current TC 85 °C IQ 1, 2 6 6
A
Ground current TC 85 °C IGND 12 12
A
Junction temperature Tj   150 °C
Storage temperature range Tstg 50 150 °C
Thermal resistances system - case Rth SC   3 K/W
system - ambient Rth SA   65 K/W
Supply voltage VS 5 20 V
Logic input voltage VI 1, 2 10 40 V
Case temperature Tj 150 °C TC 40 125 °C



Description

The integrated circuit TLE 4203 is a versatile double power driver of up to 4 A output current which is particularly suitable as a driver for DC motors in reversible operation. The push-pull power output stages operate in the switching mode and can be combined to a full-bridge configuration.

The drive of the input stage is implemented using digital logic. The device contains a temperature protection logic, output stages protected against short-circuit and integrated free-wheeling diodes.

Typical applications of TLE 4203 are for follow-up control, servo drives, servo motors, drive mechanisms, etc.
