Features:

` Double low-side switch, 2 x 2 A
` Power limitation
` Overtemperature shutdown
` Status monitoring
` Shorted-load protection
` Reverse polarity protection
` Integrated clamp Z-Diodes
` Voltage proof up to 70 V
` Temperature range 40 to 125 °C


Application

· Overload,
· Open load,
· Output shorted to ground,
· Overvoltage.


Pinout

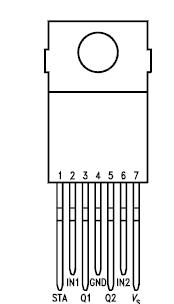

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
min.
max.
Supply voltage (pin 7) 1)
VS
45
45
V
Supply voltage (pin 7) t 500 ms
VS
70
V
Input voltage (pin 2; pin 6)
VI
5
45
V
Output voltage (pin 1)
VO
0.3
45
V
Switching current (pin 3; pin 5) IQ limited internally
A
Current with reverse polarity (pin 3; pin 5) TC 85 °C
IQ
2.2
A
Output current (pin 1)
IQ
10
mA
Max. current at inductive load
IQ
see Diagram
Junction temperature
Tj
150
°C
Storage temperature
Tstg
50
150
°C
Supply voltage
VS
6.5 2)
20
V
Supply voltage slew rate
dVS/dt
1
1
V/ms
Case temperature
TC
40
125
°C
Thermal resistancejunction to case
Rth JC
4
K/W
junction to ambient
Rth JA
65
K/W
1) Refer to monitoring and protective functions
2) Lower limit = 4.6 V, if previously VS greater than 5.6 V (turn-on hysteresis)
