TLV0838C, TLV0838CDW, TLV0838CDWR

Table of contents:
Info of TLV0838C
Info of TLV0838CDW
Info of TLV0838CDWR

TLV0838C, TLV0838CDW, TLV0838CDWR Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:01+

TLV0838C, TLV0838CDW, TLV0838CDWR Datasheet download

Five Points

Part Number: TLV0838CDW

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: N/A

D/C: 01+

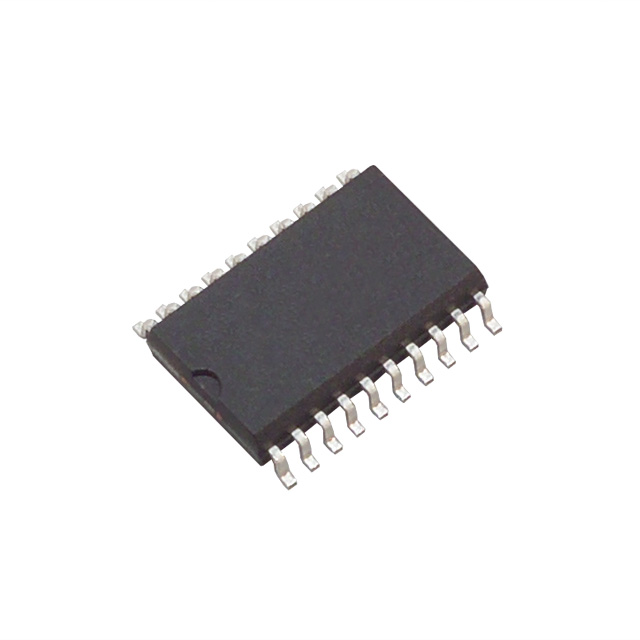

Description: IC 8BIT 37.9 KSPS ADC S/O 20SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TLV0838C General Description

These devices are 8-bit successive-approximation analog-to-digital converters, each with an input-configurable multichannel multiplexer and serial input/output. The serial input/output is configured to interface with standard shift registers or microprocessors. Detailed information on interfacing with most popular microprocessors is readily available from the factory.

The TLV0834 (4-channel) and TLV0838 (8-channel) multiplexer is software configured for single-ended or differential inputs as well as pseudo-differential input assignments. The differential analog voltage input allows for common-mode rejection or offset of the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding of any smaller analog voltage span to the full 8 bits of resolution.

The TLV0834C and TLV0838C are characterized for operation from 0°C to 70°C. The TLV0834I and TLV0838I are characterized for operation from 40°C to 85°C.

TLV0838C Maximum Ratings

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 6.5 V
Input voltage range: Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VCC + 0.3 V
Analog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VCC+ 0.3 V
Input current, II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mA
Total input current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . to 70°C
Operating free-air temperature range, TA: C suffix . . . . . . .. . . . . . . . . . . . . . . . . 0°C to 70°C
I suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package . . . . .. . . . 260°C

TLV0838C Connection Diagram

TLV0838CDW Parameters

Technical/Catalog Information	TLV0838CDW
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	8
Package / Case	20-SOIC (7.5mm Width)
Data Interface	Serial
Packaging	Tube
Sampling Rate (Per Second)	37.9k
Operating Temperature	0°C ~ 70°C
Voltage Supply Source	Single
Number of Inputs and Type	8 Single-Ended, Unipolar; 4 Differential, Unipolar
Number of Converters	1
Power Dissipation (Max)	0.66mW
Drawing Number	296; 4040000-4; DW; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLV0838CDW TLV0838CDW 296 2952 5 ND 29629525ND 296-2952-5

TLV0838CDWR Parameters

Technical/Catalog Information	TLV0838CDWR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	8
Package / Case	20-SOIC (7.5mm Width)
Data Interface	Serial
Packaging	Tape & Reel (TR)
Sampling Rate (Per Second)	37.9k
Operating Temperature	0°C ~ 70°C
Voltage Supply Source	Single
Number of Inputs and Type	8 Single-Ended, Unipolar; 4 Differential, Unipolar
Number of Converters	1
Power Dissipation (Max)	0.66mW
Drawing Number	296; 4040000-4; DW; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLV0838CDWR TLV0838CDWR
