TLV1117

PinoutSpecificationsContinuous input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 VOperating virtual junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°CStorage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . ....

product image

TLV1117 Picture
SeekIC No. : 004522245 Detail

TLV1117: PinoutSpecificationsContinuous input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 VOperating virtual junction temperature . . . . . . . . . . . . . . . . ...

floor Price/Ceiling Price

Part Number:
TLV1117
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/2

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

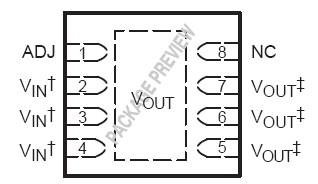

Pinout

  Connection Diagram


Specifications

Continuous input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . 20 V
Operating virtual junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C



Description

The TLV1117 is a positive low-dropout voltage regulator, designed to provide up to 800 mA of output current.The device is available in 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents.

The low-profile surface-mount KTP package of the TLV1117 allows the device to be used in applications where space is limited.The TLV1117 requires a minimum of 10 F of output capacitance for stability. Output capacitors of this size or larger normally are included in most regulator designs.

Unlike pnp-type regulators, where up to 10% of the output current is wasted as quiescent current, the quiescent current of the TLV1117 flows into the load, increasing efficiency.

The TLV1117C device is characterized for operation over the virtual junction temperature range of 0°C to 125°C,and the TLV1117I device is characterized for operation over the virtual junction temperature range of −40°C to 125°C.
