TXS0102DCUT, TXS0102YZPR, TXS0104E

Table of contents:
Info of TXS0102DCUT
Info of TXS0102YZPR
Info of TXS0104E

TXS0102DCUT, TXS0102YZPR, TXS0104E Selling Leads, Datasheet

MFG:Texas Instruments (VA) Category:Integrated Circuits (ICs) Package Cooled:US8 D/C:CALL

TXS0102DCUT, TXS0102YZPR, TXS0104E Datasheet download

Five Points

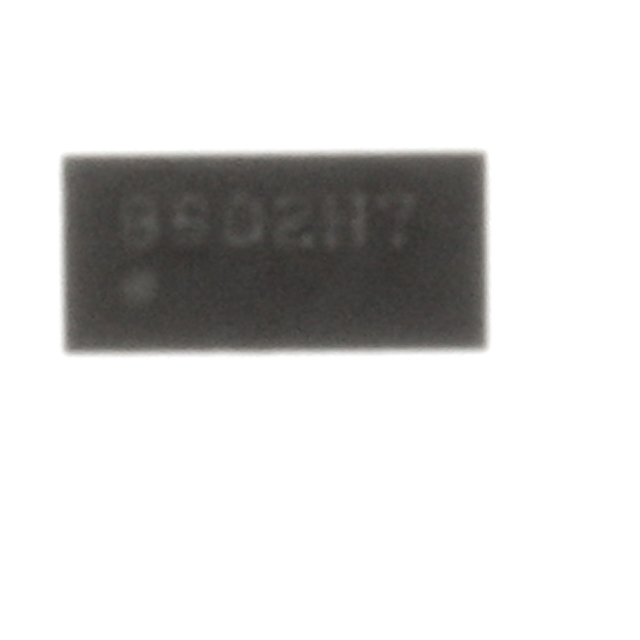

Part Number: TXS0102YZPR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments (VA)

Package Cooled: US8

D/C: CALL

Description: IC VOLT-LEVEL TRANSLATOR 8-DSBGA

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TXS0102DCUT Parameters

Technical/Catalog Information	TXS0102DCUT
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Package / Case	US8, 8-VSSOP
Packaging	Tape & Reel (TR)
Input Type	Voltage
Output Type	Voltage
Supply Voltage	1.65 V ~ 5.5 V
Data Rate	24Mbs
Number of Channels	2
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TXS0102DCUT TXS0102DCUT

TXS0102YZPR Parameters

Technical/Catalog Information	TXS0102YZPR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Package / Case	8-DSBGA
Packaging	Digi-Reel?
Input Type	Voltage
Output Type	Voltage
Supply Voltage	1.65 V ~ 5.5 V
Data Rate	24Mbs
Number of Channels	2
Operating Temperature	-40°C ~ 85°C
Drawing Number	296; 4204741-4; YZP; 8
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TXS0102YZPR TXS0102YZPR 296 21932 6 ND 296219326ND 296-21932-6

TXS0102YZPR General Description

This two-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track V_CCA. V_CCA accepts any supply voltage from 1.65 V to 3.6 V. The B port is designed to track VCCB. V_CCA must be less than or equal to V_CCB. V_CCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

TXS0102YZPR Maximum Ratings

over operating free-air temperature range (unless otherwise noted)

			MIN MAX	UNIT
V_CCA	Supply voltage range		0.5 4.6	V
V_CCB	Supply voltage range		0.5 6.5	V
V_IInput voltage range		A port	0.5 4.6	V
V_IInput voltage range		B port	0.5 6.5	V
Voltage range applied to any output V_O in the high-impedance or power-off state		A port	0.5 4.6	V
		B port	0.5 6.5	V
V_OVoltage range applied to any output in the high or low state		A port	0.5 V_CCA+ 0.5	V
		B port	0.5 V_CCB + 0.5	V
I_IKInput clamp current		V_I< 0	50	mA
I_OK Output clamp current		V_O < 0	50	mA
I_O Continuous output current			±50	mA
Continuous current through each V_CCA, V_CCB, or GND			±100	mA
Q_JA Package thermal impedance⁽⁴⁾		DCT package	220	°C/W
		DCU package	227
		YZP package	102

T_stgStorage temperature range			65 150	°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The value of V_CCA and VCCB are provided in the recommended operating conditions table.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.

TXS0102YZPR Features

` Available in the Texas Instruments NanoStar™ and NanoFree™ Packages
` 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (V_CCA < V_CCB)
` V_CC Isolation Feature If Either V_CC Input Is at GND, Both Ports Are in the High-Impedance State
` I_off Supports Partial-Power-Down Mode Operation
` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
` ESD Protection Exceeds JESD 22
   A Port
   2500-V Human-Body Model (A114-B)
   250-V Machine Model (A115-A)
   1500-V Charged-Device Model (C101)
   B Port abc
   8-kV Human-Body Model (A114-B)
   250-V Machine Model (A115-A)
   1500-V Charged-Device Model (C101)

TXS0102YZPR Connection Diagram

TXS0104E General Description

This 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104E is designed so that the OE input circuit is supplied by VCCA. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

TXS0104E Maximum Ratings

over operating free-air temperature range (unless otherwise noted)

			MIN MAX	UNIT
V_CCA	Supply voltage range		0.5 4.6	V
V_CCB	Supply voltage range		0.5 6.5	V
V_IInput voltage range⁽²⁾		A port	0.5 4.6	V
V_IInput voltage range⁽²⁾		B port	0.5 6.5	V
Voltage range applied to any output V_O in the high-impedance or power-off state⁽²⁾		A port	0.5 4.6	V
		B port	0.5 6.5	V
V_OVoltage range applied to any output in the high or low state^{(2) (3)}		A port	0.5 V_CCA+ 0.5	V
		B port	0.5 V_CCB + 0.5	V
I_IK Input clamp current		V_I< 0	50	mA
I_OK Output clamp current		V_O < 0	50	mA
I_O Continuous output current			±50	mA
Continuous current through each V_CCA, V_CCB, or GND			±100	mA
Q_JA Package thermal impedance		D package⁽⁴⁾	86	°C/W
		PW package⁽⁴⁾	113
		RGY package⁽⁵⁾	47
		GXU/ZXU package⁽⁴⁾	128
T_stg Storage temperature range			65 150	°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The value of VCCA and VCCB are provided in the recommended operating conditions table.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.
(5) The package thermal impedance is calculated in accordance with JESD 51-5.

TXS0104E Features

` 1.65 V to 3.6 V on A Port and 2.3 V to 5.5 V on 1000-V Charged-Device Model (C101) B Port (VCCA £ VCCB) (B Port)
` No Power-Supply Sequencing Required 15-kV Human-Body Model (A114-B) VCCA or VCCB Can Be Ramped First 200-V Machine Model (A115-A)
` Latch-Up Performance Exceeds 100 mA Per 1000-V Charged-Device Model (C101) JESD 78, Class II ` IEC 61000-4-2 ESD
` ESD Protection Exceeds JESD 22 (B Port) (A Port) ±8-kV Contact Discharge
2000-V Human-Body Model (A114-B) ±10-kV Air-Gap Discharge
200-V Machine Model (A115-A)

TXS0104E Connection Diagram
