TXS0104EPWR

Type :
Supply Current :
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Supply Voltage - Max : 3.6 V, 5.5 V
Supply Voltage - Min : 1.65 V, 2.3 V
Package / Case : TSSOP-14
Propagation Delay Time : 260 ns


Features:

` 1.65 V to 3.6 V on A Port and 2.3 V to 5.5 V on 1000-V Charged-Device Model (C101) B Port (V<sub>CCA</sub>< V<sub>CCB</sub>) (B Port)
` No Power-Supply Sequencing Required 15-kV Human-Body Model (A114-B) V_CCA or V_CCB Can Be Ramped First 200-V Machine Model (A115-A)
` Latch-Up Performance Exceeds 100 mA Per 1000-V Charged-Device Model (C101) JESD 78, Class II ` IEC 61000-4-2 ESD
` ESD Protection Exceeds JESD 22 (B Port) (A Port) ±8-kV Contact Discharge
   2000-V Human-Body Model (A114-B) ±10-kV Air-Gap Discharge
   200-V Machine Model (A115-A)

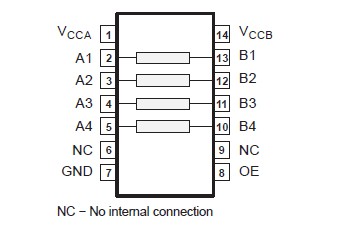

Pinout




Specifications

over operating free-air temperature range (unless otherwise noted)

			MIN MAX	UNIT
VCCA	Supply voltage range		0.5 4.6	V
VCCB			0.5 6.5
VI Input voltage range(2)		A port	0.5 4.6	V
		B port	0.5 6.5
Voltage range applied to any output VO in the high-impedance or power-off state(2)		A port	0.5 4.6	V
		B port	0.5 6.5
VO Voltage range applied to any output in the high or low state(2) (3)		A port	0.5 VCCA + 0.5	V
		B port	0.5 VCCB + 0.5
IIK Input clamp current		VI < 0	50	mA
IOK Output clamp current		VO < 0	50	mA
IO Continuous output current			±50	mA
Continuous current through each VCCA, VCCB, or GND			±100	mA
QJA Package thermal impedance		D package(4)	86	°C/W
		PW package(4)	113
		RGY package(5)	47
		GXU/ZXU package(4)	128
Tstg Storage temperature range			65 150	°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The value of V_CCA and VCCB are provided in the recommended operating conditions table.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.
(5) The package thermal impedance is calculated in accordance with JESD 51-5.

Description

This 4-bit noninverting translator TXS0104EPWR uses two separate configurable power-supply rails. The A port is designed to track V_CCA. V_CCA accepts any supply voltage from 1.65 V to 3.6 V. V_CCA must be less than or equal to V_CCB. The B port is designed to track V_CCB. V_CCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

When the output-enable (OE) input of TXS0104EPWR is low, all outputs are placed in the high-impedance state.

The TXS0104EPWR is designed so that the OE input circuit is supplied by V_CCA.

To ensure the high-impedance state during power up or power down, OE of TXS0104EPWR should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

Parameters:

Technical/Catalog Information	TXS0104EPWR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Package / Case	14-TSSOP
Packaging	Cut Tape (CT)
Input Type	Voltage
Output Type	Voltage
Supply Voltage	1.65 V ~ 5.5 V
Data Rate	24Mbs
Number of Channels	4
Operating Temperature	-40°C ~ 85°C
Drawing Number	296; 4040064; PW; 8, 14, 16, 20, 24, 28
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TXS0104EPWR TXS0104EPWR 296 20697 1 ND 296206971ND 296-20697-1
