VND810SP, VND810SP13TR, VND810SP-E

Table of contents:
Info of VND810SP
Info of VND810SP13TR
Info of VND810SP-E

VND810SP, VND810SP13TR, VND810SP-E Selling Leads, Datasheet

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:SOP10 D/C:296

VND810SP, VND810SP13TR, VND810SP-E Datasheet download

Five Points

Part Number: VND810SP

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics

Package Cooled: SOP10

D/C: 296

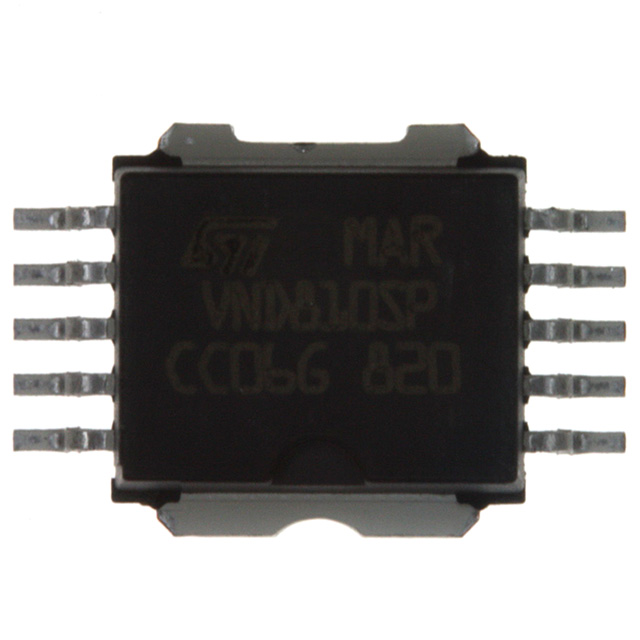

Description: IC DVR HI SIDE 2CH 3.5A PWRSO10

Price Break

1
10
100
250
500
1000
2500

Unit Price

3.43000
3.19100
2.48220
2.00940
1.71390
1.59570
1.51296

Extended Price

3.43
31.91
248.22
502.35
856.95
1595.70
3782.40

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

VND810SP Parameters

Technical/Catalog Information	VND810SP
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	160 mOhm
Current - Output / Channel	-
Current - Peak Output	5A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	VND810SP VND810SP 497 3305 5 ND 49733055ND 497-3305-5

VND810SP General Description

The VND810SP is a monolithic device made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground.

Active V_CCpin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The device detects open load condition both in on and off state. Output shorted to V_CC is detected in the off state. Device automatically turns off in case of ground pin disconnection.

VND810SP Maximum Ratings

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	41	V
-V_CC	Reverse DC Supply Voltage	-0.3	V
- I_GND	DC Reverse Ground Pin Current	-200	mA
I_OUT	DC Output current	Internally Limited	A
-I_OUT	Reverse DC Output Current	-6	A
I_IN	DC Input Current	+/- 10	mA
I_STAT	DC Status Current	+/- 10	mA
V_ESD	Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - STATUS - OUTPUT - V_CC	4000 4000 5000 5000	V V V V
_{E_MAX}	Maximum Switching Energy (L=1.4mH; R_L=0; V_bat=13.5V; T_jstart=150; I_L=5A)	24	mJ
P_tot	Power Dissipation T_C=25°C	52	W
T_j	Junction operating temperature	Internally Limited
T_c	Case Operating Temperature	- 40 to 150
T_stg	Storage Temperature	-55 to 150

VND810SP13TR Parameters

Technical/Catalog Information	VND810SP13TR
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	160 mOhm
Current - Output / Channel	-
Current - Peak Output	5A
Packaging	Tape & Reel (TR)
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VND810SP13TR VND810SP13TR

VND810SP-E Parameters

Technical/Catalog Information	VND810SP-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	160 mOhm
Current - Output / Channel	-
Current - Peak Output	5A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VND810SP E VND810SPE
