The VND830MSP is a monolithic device designed in STMicroelectronics VIPower m0-3 Technology,intended for driving any kind of load with one side connected to ground.
Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The device detects open load condition both in on and off state. Output shorted to VCC is detected in the off state. The openload threshold is aimed at detecting the 5W/12V standard bulb as an openload fault in the on state. Device automatically turns off in case of ground pin disconnection.
VND830MSP Maximum Ratings
Symbol
Parameter
Value
Unit
VCC
DC Supply Voltage
41
V
-VCC
Reverse DC Supply Voltage
-0.3
V
- IGND
DC Reverse Ground Pin Current
-200
mA
IOUT
DC Output current
Internally Limited
A
-IOUT
Reverse DC Output Current
-6
A
IIN
DC Input Current
+/- 10
mA
ISTAT
DC Status Current
+/- 10
mA
VESD
Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - STATUS - OUTPUT - VCC
4000 4000 5000 5000
V V V V
EMAX
Maximum Switching Energy (L=1.8mH; RL=0; Vbat=13.5V; Tjstart=150; IL=9A)
100
mJ
Ptot
Power Dissipation TC=25°C
73.5
W
Tj
Junction operating temperature
Internally Limited
Tc
Case Operating Temperature
- 40 to 150
Tstg
Storage Temperature
-55 to 150
VND830MSP-E Parameters
Technical/Catalog Information
VND830MSP-E
Vendor
STMicroelectronics
Category
Integrated Circuits (ICs)
Package / Case
PowerSO-10 Exposed Bottom Pad
Mounting Type
Surface Mount
Type
High Side
Voltage - Supply
5.5 V ~ 36 V
On-State Resistance
60 mOhm
Current - Output / Channel
-
Current - Peak Output
9A
Packaging
Tube
Input Type
Non-Inverting
Number of Outputs
2
Operating Temperature
-40°C ~ 150°C
Drawing Number
*
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
VND830MSP E VND830MSPE
VND830MSP-E General Description
The VND830MSP-E is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground.
Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).
Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The device detects open load condition both in on and off state. Output shorted to VCC is detected in the off state. The openload threshold is aimed at detecting the 5W/12V standard bulb as an openload fault in the on state. Device automatically turns off in case of ground pin disconnection.
VND830MSP-E Maximum Ratings
Symbol
Parameter
Value
Unit
VCC
DC Supply Voltage
41
V
-VCC
Reverse DC Supply Voltage
-0.3
V
-IGND
DC Reverse Ground Pin Current
-200
mA
IOUT
DC Output Current
Internally Limited
A
-IOUT
Reverse DC Output Current
-6
A
IIN
DC Input Current
+/-10
mA
ISTAT
DC Status Current
+/-10
mA
VESD
Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - STATUS - OUTPUT - VCC
4000 4000 5000 5000
V V V V
EMAX
Maximum Switching Energy (L=1.8mH; RL=0; Vbat =13.5V; Tjstart=150; IL =9A)
100
mJ
Ptot
Power Dissipation TC =25
73.5
W
Tj
Junction Operating Temperature
Internally Limited
Tc
Case Operating Temperature
- 40 to 150
Tstg
Storage Temperature
- 55 to 150
VND830MSP-E Features
·CMOS COMPATIBLE INPUTS ·OPEN DRAIN STATUS OUTPUTS ·ON STATE OPEN LOAD DETECTION ·OFF STATE OPEN LOAD DETECTION ·SHORTED LOAD PROTECTION ·UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN ·LOSS OF GROUND PROTECTION ·VERY LOW STAND-BY CURRENT ·REVERSE BATTERY PROTECTION (**) ·IN COMPLIANCE WITH THE 2002/95/EC EUROPEAN DIRECTIVE

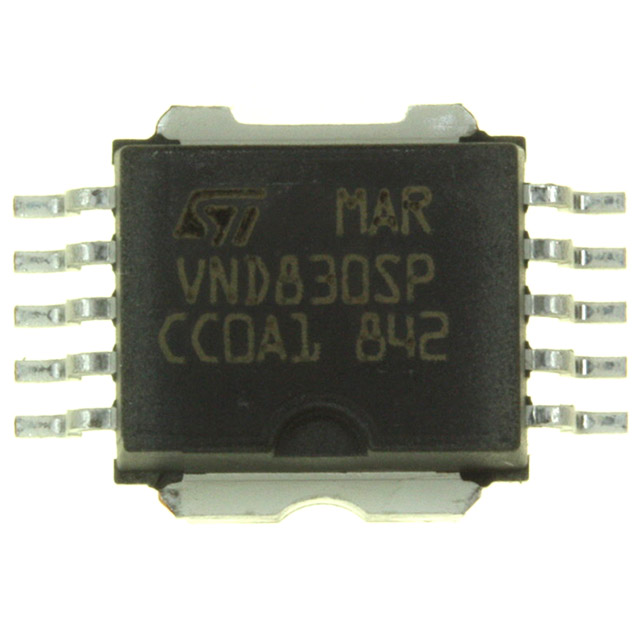

The VND830SP is a monolithic device made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground.
Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The device detects open load condition both in on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.
VND830SP Maximum Ratings
Symbol
Parameter
Value
Unit
VCC
DC Supply Voltage
41
V
-VCC
Reverse DC Supply Voltage
-0.3
V
- IGND
DC Reverse Ground Pin Current
-200
mA
IOUT
DC Output current
Internally Limited
A
-IOUT
Reverse DC Output Current
-6
A
IIN
DC Input Current
+/- 10
mA
ISTAT
DC Status Current
+/- 10
mA
VESD
Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - STATUS - OUTPUT - VCC
4000 4000 5000 5000
V V V V
EMAX
Maximum Switching Energy (L=1.8mH; RL=0; Vbat=13.5V; Tjstart=150; IL=9A)
