020188, US $ 27.13-46.7, 020188 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003438300 Detail

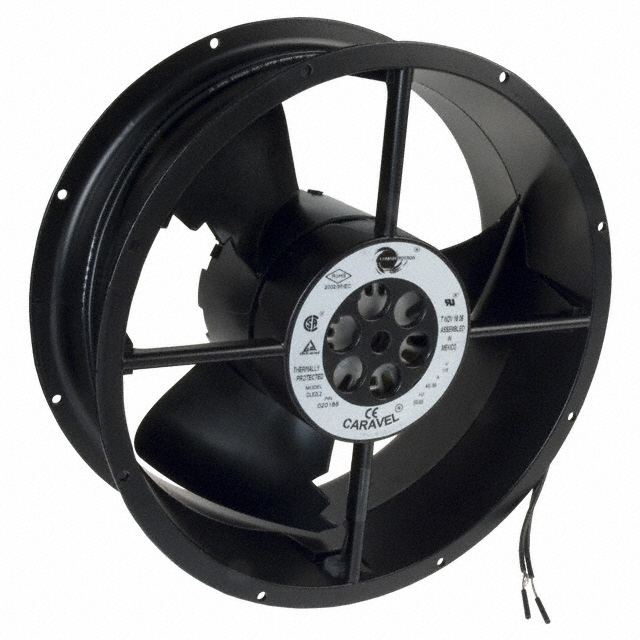

020188: FAN 115VAC 254MM X 89MM CLE2L2

020188 Data Sheet

US $ 27.13~46.7 / Piece | Get Latest Price

Part Number:: 020188
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250
250~500
500~1000

Unit Price
$46.7
$42.26
$34.47
$30.02
$28.91
$27.8
$27.13

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

0201029 evaluate
US $1.29 - 1.62 / Piece

Terminal Block Tools & Accessories FB 5- 6
0201-0500/J evaluate
US $.48 - .55 / Piece

Fuseholders, Clips, & Hardware SCREW KUSC SHORTING
0201061 evaluate
US $2.7 - 3.23 / Piece

Terminal Block Tools & Accessories D-SSK 0525 KER

Product Details

Quick Details

Series:	Caravel AC	Manufacturer:	Comair Rotron
Air Flow:	525.0 CFM (14.86m³/min)	Bearing Type:	Ball
Fan Type:	Tubeaxial	Features:	-
Noise:	49.2 dB(A)	Power (Watts):	61W
RPM:	1650 RPM	Series :	SZNUP411
Size / Dimension:	Round - 254mm Dia x 89mm W	Static Pressure:	0.331 in H2O (82.4 Pa)
Termination:	2 Wire Leads	Voltage - Rated:	115VAC

Description

Bearing Type: Ball
Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Voltage - Rated: 115VAC
Manufacturer: Comair Rotron
Size / Dimension: Round - 254mm Dia x 89mm W
Weight: 4.4 lbs (2kg)
RPM: 1650 RPM
Series: Caravel AC
Air Flow: 525.0 CFM (14.86m³/min)
Noise: 49.2 dB(A)
Static Pressure: 0.331 in H2O (82.4 Pa)
Power (Watts): 61W

Parameters:

Technical/Catalog Information	020188
Vendor	Comair-Rotron
Category	Fans
Air Flow	525.0 CFM (14.86m³/min)
Bearing Type	Ball
Fan Type	Tubeaxial
Noise	49.2 dB(A)
Power (Watts)	61W
Size / Dimension	Round - 254mm Dia x 89mm W
Static Pressure	0.331 in H2O (82.4 Pa)
Termination	2 Wire Leads
Voltage Rating	115VAC
RPM	1650 RPM
Weight	4.4 lbs (2.00kg)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	020188 020188 CR144 ND CR144ND CR144
