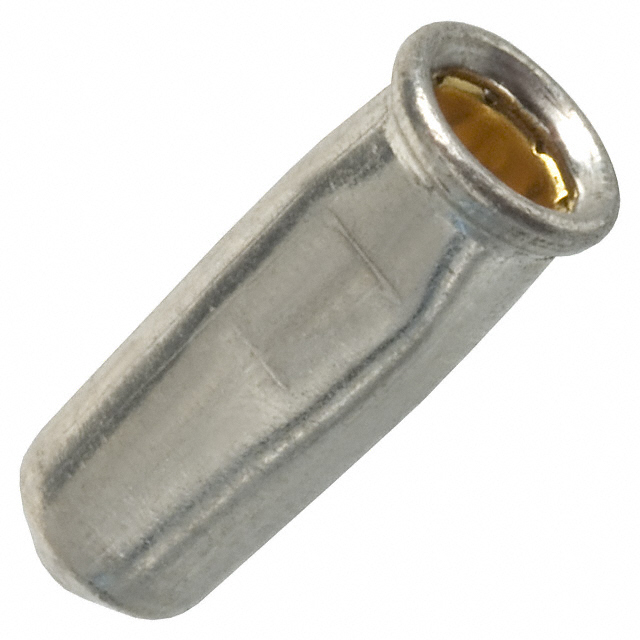

See larger image

SeekIC No. : 003405789 Detail

1-645979-2: CONN SOCKET RCPT .042-.049 GOLD

1-645979-2 Data Sheet

Get Latest Price

Part Number:: 1-645979-2
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1-640100-1 evaluate
Heavy Duty Power Connectors OBSOLETE
1-640133-0 evaluate
US $.93 - .97 / Piece

Standard Card Edge Connectors 10P BIF-LEAF CONN ASSM EDGE
1-640133-2 evaluate
Standard Card Edge Connectors OBSOLETE

Product Details

Quick Details

Series:	5	Manufacturer:	TE Connectivity
Tail Type:	No Tail	Termination:	Solder
Length - Overall:	0.308" (7.82mm)	Accepts Pin Diameter:	0.042" ~ 0.049" (1.07mm ~ 1.24mm)
Mounting Hole Diameter:	0.102" (2.59mm)	Off-State Capacitance CO :	25 pF, 35 pF
Pin Hole Diameter:	-	Flange Diameter:	0.118" (3.00mm)
Tail Diameter:	-	Socket Depth:	0.148" ~ 0.275" (3.76mm ~ 6.99mm)
Contact Material:	Beryllium Copper	Contact Finish:	Gold
Contact Finish Thickness:	30µin (0.76µm)

Description

Manufacturer: TE Connectivity
Tail Type: No Tail
Termination: Solder
Pin Hole Diameter: -
Tail Diameter: -
Contact Material: Beryllium Copper
Contact Finish: Gold
Contact Finish Thickness: 30µin (0.76µm)
Packaging: Tape & Reel (TR)
Series: 5
Accepts Pin Diameter: 0.042" ~ 0.049" (1.07mm ~ 1.24mm)
Flange Diameter: 0.118" (3.00mm)
Length - Overall: 0.308" (7.82mm)
Mounting Hole Diameter: 0.102" (2.59mm)
Socket Depth: 0.148" ~ 0.275" (3.76mm ~ 6.99mm)

Parameters:

Technical/Catalog Information	1-645979-2
Vendor	Tyco Electronics
Category	Sockets for ICs, Transistors
Contact Finish	Gold
Flange Diameter	0.118" (3.00mm)
Hole Diameter	0.102" (2.59mm)
Inside Diameter	0.049" (1.24mm)
Length	0.308" (7.82mm)
Type	No Tail
Mounting Type	Through Hole, Solder
Contact Finish Thickness	5in (0.13m)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	1 645979 2 16459792 A29045 ND A29045ND A29045
