10056246-1070LF

Board to Board / Mezzanine Connectors 150 POS VERTICAL SIGNAL HDR MEZZ

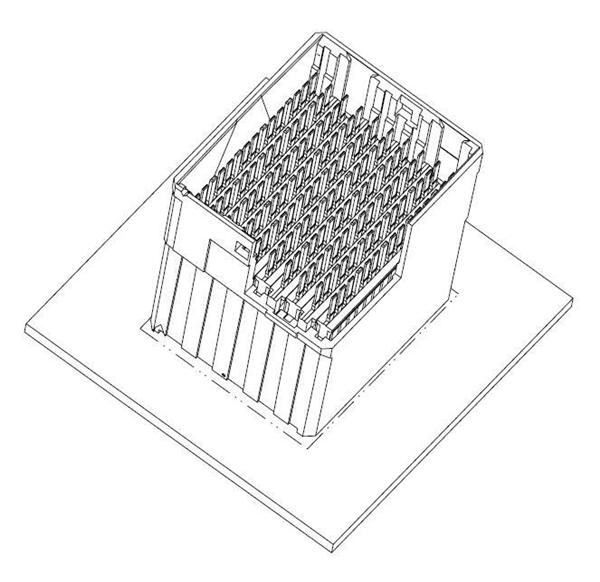

product image

10056246-1070LF Picture
See larger image
SeekIC No. : 002149292 Detail

10056246-1070LF: Board to Board / Mezzanine Connectors 150 POS VERTICAL SIGNAL HDR MEZZ

10056246-1070LF Data Sheet

floor Price/Ceiling Price

US $ 8.12~8.56 / Piece | Get Latest Price
Part Number:
10056246-1070LF
Mfg:
FCI
Supply Ability:
5000

Price Break

  • Qty
  • 0~58
  • 58~100
  • Unit Price
  • $8.56
  • $8.12
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series : AirMax VS Product Type : Headers
Pitch : 2 mm Mounting Style : Through Hole
Mounting Angle : Vertical Number of Positions / Contacts : 150
Number of Rows : 10 Housing Material : Thermoplastic, High Temperature
Contact Material : Copper Alloy

Description

Stack Height :
Contact Plating :
Voltage Rating :
Current Rating :
Mounting Angle : Vertical
Housing Material : Thermoplastic, High Temperature
Product Type : Headers
Contact Material : Copper Alloy
Mounting Style : Through Hole
Pitch : 2 mm
Number of Rows : 10
Series : AirMax VS
Number of Positions / Contacts : 150


Parameters:

Technical/Catalog Information10056246-1070LF
VendorFCI
CategoryConnectors
ColorNatural
Connector StyleAirmax
Connector TypeHeader, Male Pins, Shrouded
Connector Usage-
Contact FinishGold
Contact Finish Thickness-
Contact Layout, Typical-
Features-
Mounting TypeThrough Hole
Number of Columns10
Number of Positions 150
Number of Rows15
Pitch0.055" (1.40mm)
TerminationPress-Fit
Number of Contacts LoadedAll
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 10056246 1070LF
100562461070LF
