Features:

·15 - 1000 MHz
·High Isolation
·+40 dBm 3rd Order Intercept
·Non-Reflective
·CMOS Driver
·SMA Connectors



Pinout

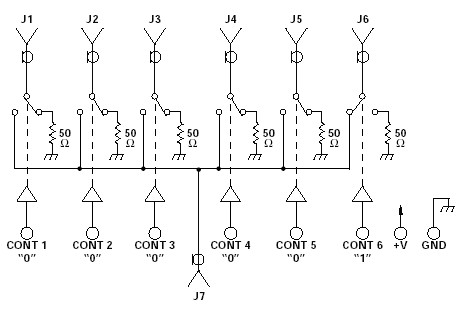

Connection Diagram


Specifications

Parameter
Min
Typ
Max
Units
Conditions
Operating Frequency
15
1000
MHz
DC Current
20
25
mA
 At +10 VDC Supply
To +15 VDC Supply
Control Type
CMOS
6 Line
Logic "0" =Off
Logic "1" =On
Control Current High
Low
±10
±10
A
A
 VIH = +V
VIL = +0V
Insertion Loss
1.2
1.5
1.5
1.8
dB
dB
 30 - 300MHz
15 - 1000MHz
Isolation
90
75
60
50
95
85
70
60
dB
dB
dB
dB
 15 - 200 MHz
200 - 400 MHz
400 - 700 MHz
700 - 1000 MHz
VSWR
1.15/1
1.4/1
20 - 600 MHz
Impedance
50
OHMS
Switching Speed
50
SEC
 50% TTL to 90% / 10% RF
Transition (Rise/Fall) Time
1.5
SEC
 10% / 90% to 90% / 10% RF
Switching (Video) Transients
1
V
 Peak Value
Intercept Points                    2nd
                                             3nd
+70
+40
dBm
dBm

RF Power                        Operate
                                 No Damage


+15
dBm

Operating Temperature
-55
+25
+85
TA
