10BQ015

Recovery Time :
Maximum Power Dissipation :
Configuration : Single
Mounting Style : SMD/SMT
Operating Temperature Range : - 55 C to + 125 C
Product : Schottky Rectifiers
Maximum Reverse Leakage Current : 500 uA
Forward Continuous Current : 1 A
Packaging : Bulk
Peak Reverse Voltage : 15 V
Package / Case : SMB (DO-214AA)
Max Surge Current : 140 A
Forward Voltage Drop : 0.44 V at 2 A


Features:

* Small footprint, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long-term reliability

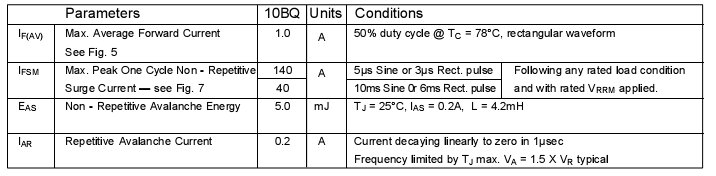

Specifications




Description

The 10BQ015 surface-mount Schottky rectifier has been de-signed for applications requiring very low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging and reverse battery protection.
