1206L016

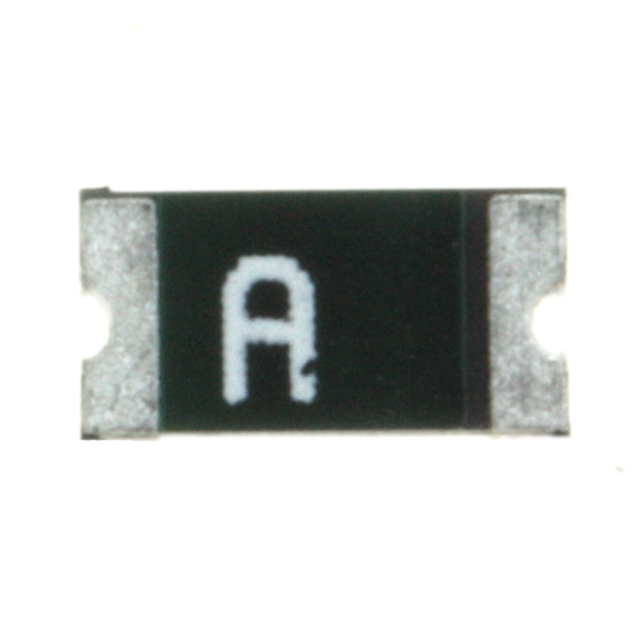

      The 1206L series device provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.It has six unique features which is as follows : The first one is RoHS compliant and lead-free. The second one is fast response to fault currents. The third one is compact design saves board space. The forth one is low resistance. The fifth one is low-profile. The sixth one is c it is ompatible with high temperature solders. Otherwise, it also have many applications: The first one is USB peripherals. The second one is disk drives. The third one is CD-ROMs. The forth one is plug and play protection for motherboards and peripherals. The fifth one is mobile phones - battery
and port protection. The sixth one is disk drives. The seventh one is PDAs / digital cameras. The eighth one is game console port protection.
     There are some other specifications abour it. Electrical characteristics : I_hold is 0.16 A. I_trip is 0.37 A. V_max is 30 Vdc. I_max is 100 A. Resistance is 1.200 min, 2.800 typp and 3.600 max. Temperature rerating : Hold current is 0.22 A when the ambient operation temperature is -40°C. Hold current is 0.20 A when the ambient operation temperature is -20°C. Hold current is 0.18 A when the ambient operation temperature is 0°C. Hold current is 0.16 A when the ambient operation temperature is 23°C. Hold current is 0.14 A when the ambient operation temperature is 40°C. Hold current is 0.12 A when the ambient operation temperature is 50°C.Hold current is 0.10 A when the ambient operation temperature is 60°C.Hold current is 0.09 A when the ambient operation temperature is 70°C. Hold current is 0.08 A when the ambient operation temperature is 85°C.The terminal material is Solder-Plated Copper (Solder Material: Matte Tin (Sn)). Lead Solderability Meets EIA Specification RS186-9E, ANSI/J-STD-002 Category 3. Environmental Specifications: Operating//Storage Temperature is -40°C to +85°C. Maximum Device Surface Temperature in Tripped State is 125°C. Passive Aging is +85°C, 1000 hours±5% typical resistance change. Humidity Aging is +85°C, 85%R.H. 1000 hours±5% typical resistance change.
