1221-2133

Zigbee / 802.15.4 Modules ZigBee 64K Module w/ Extended Range

product image

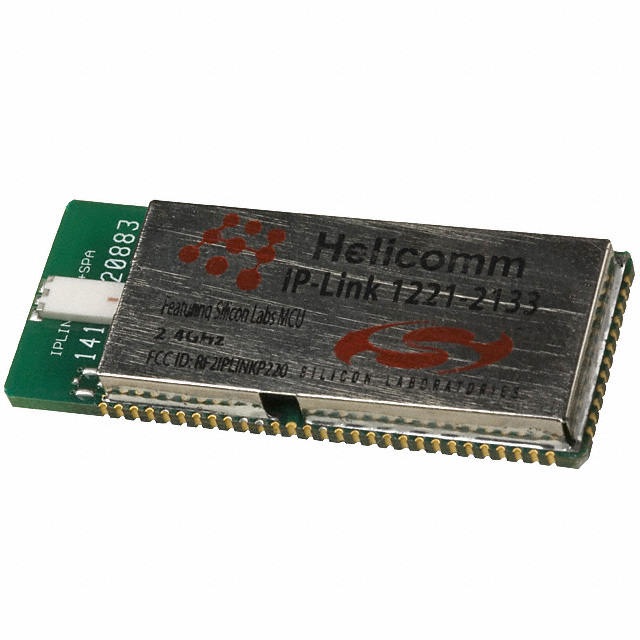

1221-2133 Picture
See larger image
SeekIC No. : 00130652 Detail

1221-2133: Zigbee / 802.15.4 Modules ZigBee 64K Module w/ Extended Range

1221-2133 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
1221-2133
Mfg:
Helicomm
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Frequency Band : 2.4 GHz Data Rate : 250 Kbps
Output Power : 31.62 mW Antenna Connector Type : Chip
Dimensions : 46 mm x 19 mm x 4 mm

Description

Sensitivity :
Operating Supply Voltage :
Supply Current Transmitting :
Supply Current Receiving :
Line of Sight Range :
Maximum Operating Temperature :
Frequency Band : 2.4 GHz
Data Rate : 250 Kbps
Antenna Connector Type : Chip
Output Power : 31.62 mW
Dimensions : 46 mm x 19 mm x 4 mm


Parameters:

Technical/Catalog Information1221-2133
VendorHelicomm Inc
CategoryRF and RFID
Frequency2.4GHz
Data Rate - Maximum250kbps
Modulation or Protocol802.15.4 Zigbee
Applications-
Power - Output15dBm
Sensitivity-94dBm
Voltage - Supply-
Current - Receiving100mA
Current - Transmitting100mA
Package / CaseModule
Operating Temperature-20°C ~ 70°C
Data InterfacePCB, Surface Mount
Antenna ConnectorOn-Board, Chip
PackagingBox
Memory Size128kB Flash, 8kB RAM
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 1221 2133
12212133
611 1002 ND
6111002ND
611-1002
