Product Details

Description



Features:

· Access Times of 50*, 60, 70, 90, 120, 150ns
· Packaging
•32 lead, Hermetic Ceramic, 0.400" SOJ (Package 101)
•32 pin, Hermetic Ceramic, 0.600" DIP (Package 300)
• 32 lead, Flatpack (Package 220)
• 32 lead, Formed Flatpack (Package 221)
• 32 pin, Rectangular Ceramic Leadless Chip Carrier (Package 601)
· 100,000 Erase/Program Cycles Minimum
· Sector Erase Architecture
• 8 equal size sectors of 16KBytes each
• Any combination of sectors can be concurrently
erased. Also supports full chip erase
· Organized as 128Kx8
· Commercial, Industrial and Military Temperature Ranges
· 5 Volt Programming. 5V ± 10% Supply.
· Low Power CMOS
· Embedded Erase and Program Algorithms
· TTL Compatible Inputs and CMOS Outputs
· Page Program Operation and Internal Program Control Time.
  Note: For programming information refer to Flash Programming 1M5 Application Note.
· The access time of 50ns is available in Industrial and Commercial temperature ranges only.




Pinout

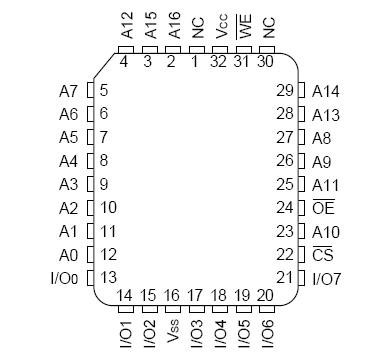

  Connection Diagram


Specifications

Parameter   Unit
Operating Temperature -55 to +125 °C
Supply Voltage Range (VCC) -2.0 to +7.0 V
Signal voltage range (any pin except A9) (2) -2.0 to +7.0 V
Storage Temperature Range -65 to +150 °C
Lead Temperature (soldering, 10 seconds) +300 °C
Data Retention Mil Temp 10 years
Endurance (write/erase cycles) Mil Temp 10,000 min. cycles
A9 Voltage for sector protect (VID) (3) -2.0 to +14.0 V
NOTES:
1. Stresses above the absolute maximum rating may cause permanent damage
to the device. Extended operation at the maximum levels may degrade
performance and affect reliability.
2. Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions,
inputs may overshoot VSS to -2.0 V for periods of up to 20ns. Maximum DC
voltage on output and I/O pins is VCC + 0.5V. During voltage transitions,
outputs may overshoot to Vcc + 2.0 V for periods of up to 20ns.
3. Minimum DC input voltage on A9 pin is -0.5V. During voltage transitions, A9 may
overshoot Vss to -2V for periods of up to 20ns. Maximum DC input voltage on A9
is +13.5V which may overshoot to 14.0 V for periods up to 20ns.
