12CWQ10G

Recovery Time :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Product : Schottky Rectifiers
Packaging : Tube
Operating Temperature Range : - 55 C to + 150 C
Peak Reverse Voltage : 100 V
Configuration : Dual Common Cathode
Package / Case : DPAK (TO-252AA)
Forward Continuous Current : 6 A
Max Surge Current : 330 A
Maximum Reverse Leakage Current : 220 uA
Forward Voltage Drop : 0.95 V at 12 A


Features:

Popular D-PAK outline
Center tap configuration
Small foot print, surface mountable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability

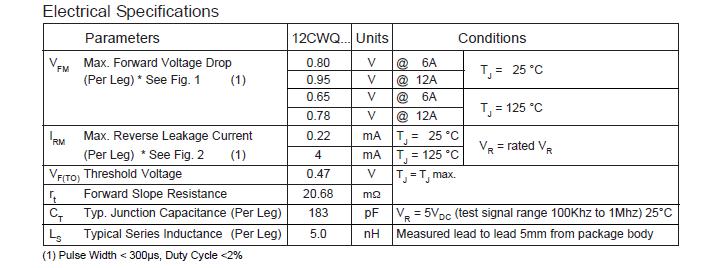

Specifications




Description

The 12CWQ10G surface mount, center tap, Schottky rectifier series has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.
