Product Details

Description

Features:

Package in 8mm tape on 7diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Multi-color type.
Pb-free.

Application

Automotive: backlighting in dashboard and switch.
Telecommunication: indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.

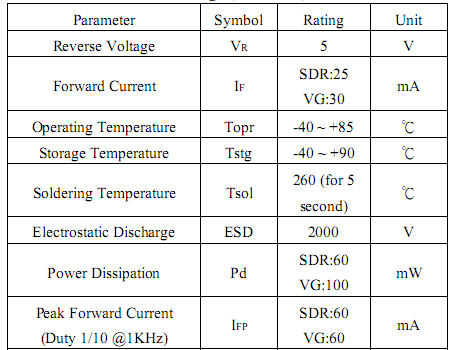

Specifications

Connection Diagram

Description

The 15-22S530-A2 SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight of the 15-22S530-A2 makes them ideal for miniature applications. etc.
