1.5KE7V5A

TVS Diodes - Transient Voltage Suppressors 1500 W 10/1000 6.8V to 440V Transil

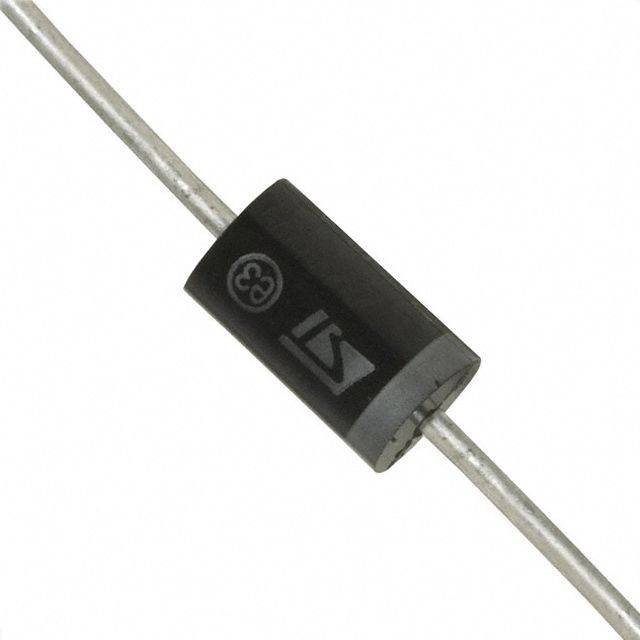

product image

1.5KE7V5A Picture
See larger image
SeekIC No. : 00237614 Detail

1.5KE7V5A: TVS Diodes - Transient Voltage Suppressors 1500 W 10/1000 6.8V to 440V Transil

1.5KE7V5A Data Sheet

floor Price/Ceiling Price

US $ .19~.23 / Piece | Get Latest Price
Part Number:
1.5KE7V5A
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1600
  • 1600~2000
  • 2000~5000
  • 5000~10000
  • Unit Price
  • $.23
  • $.22
  • $.2
  • $.19
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Polarity : Unidirectional Clamping Voltage : 14.5 V
Operating Voltage : 6.4 V Package / Case : DO-201
Breakdown Voltage : 7.13 V Peak Surge Current : 690 A
Peak Pulse Power Dissipation : 1500 W Maximum Operating Temperature : + 175 C
Minimum Operating Temperature : - 65 C Packaging : Ammo

Description

Channels :
Termination Style :
Capacitance :
Polarity : Unidirectional
Peak Pulse Power Dissipation : 1500 W
Minimum Operating Temperature : - 65 C
Maximum Operating Temperature : + 175 C
Packaging : Ammo
Package / Case : DO-201
Clamping Voltage : 14.5 V
Operating Voltage : 6.4 V
Breakdown Voltage : 7.13 V
Peak Surge Current : 690 A


Specifications

Part Number 1.5KE7V5A
Power Rating (W) 1500
Reverse Standoff Voltage VRWM (V) 6.4
Breakdown Voltage VBR Min 7.13
Breakdown Voltage VBR Max 7.88
Max Reverse Leakage Current IR @ VRWM Max (µA) 500
Max Clamping Voltage @ Max Peak Pulse Current VC (V) 11.3
