Size :
Material : Nylon
Color : Black
Mounting Method : Panel
Type : Strain Relief Bushing


Features:

Logic Translation
Bi-Directional
Invert / Non-Invert
TTL-CMOS Convert
3V-5V convert
Toroidal construction
Low Profile
Dual or Quad packs
700VDC Isolation

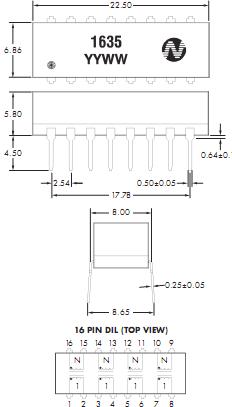

Pinout




Specifications

Operating free air temperature range.................................0°C to 70°C Storage temperature range...........................................-40°C to 125°V Lead Temperature 1.5mm from case for 10 seconds.....................300°C Isolation voltage (flash tested for 1 second)................................700VDC Insulation resistance at 500VDC....................................................>10G


Description

TThe 1605 are dual or quad isolation transformer packs for use in digital circuits. 1605 are particularly suited to isolating microprocessor bus connections and performing logic level translation. Being completely passive, power savings are offered over opto-coupled or emitter follower solutions.
