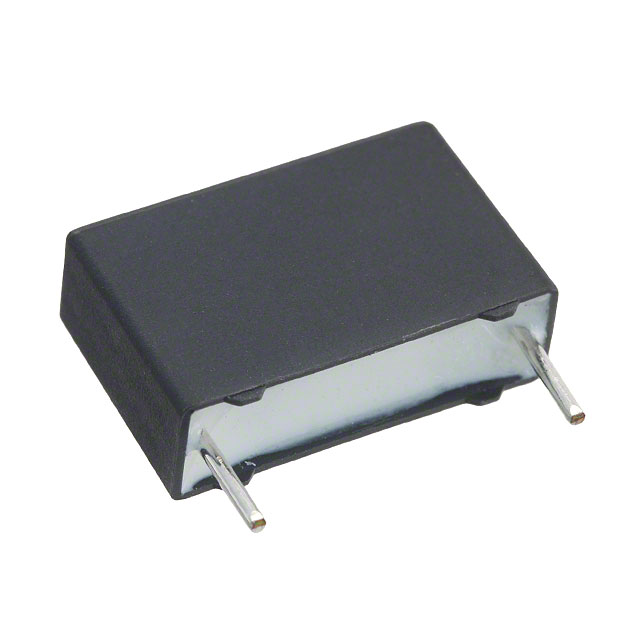

160684K100G: CAP FILM 0.68UF 100VDC RADIAL

160684K100G Data Sheet

US $ .32~.32 / Piece | Get Latest Price

Part Number:: 160684K100G
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~672

Unit Price
$.32

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1606 evaluate
US $.31 - .31 / Piece

JACK .015-.025".248"L SLD MNT
1606 SL021 evaluate
US $121.15 - 138.46 / Piece

Multi-Paired Cable 26AWG 6C UNSHLD 1000ft SPOOL SLATE
1606 SL030 evaluate
US $56.74 - 65.48 / Piece

Multi-Paired Cable 26AWG 6C UNSHLD 328ft SPOOL SLATE

Product Details

Quick Details

Series:	160	Manufacturer:	Cornell Dubilier Electronics (CDE)
Capacitance:	0.68µF	Voltage Rating - AC:	63V
Voltage Rating - DC:	100V	Dielectric Material:	Polyester, Metallized
Tolerance:	±10%	ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C	Mounting Type:	Through Hole
Package / Case:	Radial	Size / Dimension:	0.709" L x 0.236" W (18.00mm x 6.00mm)
Mounting Style :	Stud	Height - Seated (Max):	0.472" (12.00mm)
Termination:	PC Pins	Lead Spacing:	0.591" (15.00mm)
Features:	General Purpose	Applications:	-

Description

ESR (Equivalent Series Resistance): -
Mounting Type: Through Hole
Package / Case: Radial
Termination: PC Pins
Features: General Purpose
Applications: -
Voltage Rating - AC: 63V
Voltage Rating - DC: 100V
Dielectric Material: Polyester, Metallized
Operating Temperature: -55°C ~ 125°C
Tolerance: ±10%
Capacitance: 0.68µF
Height - Seated (Max): 0.472" (12.00mm)
Lead Spacing: 0.591" (15.00mm)
Packaging: Bulk
Size / Dimension: 0.709" L x 0.236" W (18.00mm x 6.00mm)
Manufacturer: Cornell Dubilier Electronics (CDE)
Series: 160

Parameters:

Technical/Catalog Information	160684K100G
Vendor	Cornell Dubilier Electronics (CDE)
Category	Capacitors
Capacitance	0.68F
Voltage - Rated	100V
Tolerance	±10%
Dielectric Material	Metallized Polyester Film
Package / Case	Radial
Packaging	Bulk
Maximum Temperature	-55°C ~ 125°C
Lead Spacing	0.591" (15.00mm)
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Mounting Type	Through Hole
Features	General Purpose
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	160684K100G 160684K100G
