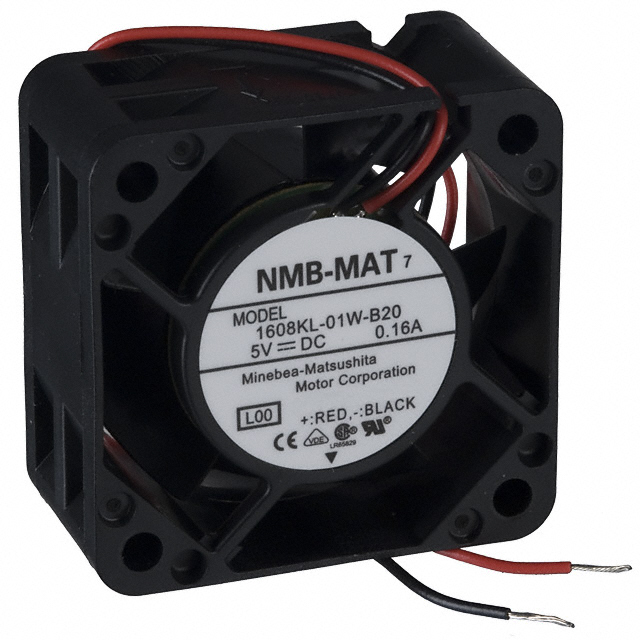

1608KL-01W-B20-L00: FAN DC AXIAL 5V 40X20 5500 RPM

1608KL-01W-B20-L00 Data Sheet

US $ 3.68~7.21 / Piece | Get Latest Price

Part Number:: 1608KL-01W-B20-L00
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$7.21
$6.59
$5.52
$5.06
$4.45
$4.14
$3.83
$3.68

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1608 evaluate
US $42.4 - 57.82 / Piece

Transformers Audio & Signal 10W 8K ct / 4-8-16 Push-Pull Tube Type
1608 SL021 evaluate
US $153.19 - 176.05 / Piece

Multi-Paired Cable 26AWG 8C UNSHLD 1000ft SPOOL SLATE
1608 SL030 evaluate
US $71.56 - 83.57 / Piece

Multi-Paired Cable 26AWG 8C UNSHLD 328ft SPOOL SLATE

Product Details

Quick Details

Series:	1608KL	Manufacturer:	NMB Technologies Corporation
Fan Type:	Tubeaxial	Size / Dimension:	Square - 40mm L x 40mm H x 20mm W
Voltage - Rated:	5VDC	Power (Watts):	0.60W
Features:	-	RPM:	5500 RPM
Noise:	22.5 dB	Static Pressure:	0.121 in H2O (30.1 Pa)
Package / Case :	SOP-20	Air Flow:	6.0 CFM (0.17m³/min)
Termination:	2 Wire Leads	Bearing Type:	Ball

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Voltage - Rated: 5VDC
Bearing Type: Ball
RPM: 5500 RPM
Manufacturer: NMB Technologies Corporation
Size / Dimension: Square - 40mm L x 40mm H x 20mm W
Power (Watts): 0.60W
Air Flow: 6.0 CFM (0.17m³/min)
Series: 1608KL
Noise: 22.5 dB
Static Pressure: 0.121 in H2O (30.1 Pa)

Parameters:

Technical/Catalog Information	1608KL-01W-B20-L00
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Voltage - Rated	5VDC
Power (Watts)	0.6W
Bearing Type	Ball
Size / Dimension	Square - 40mm L x 40mm H x 20mm W
Air Flow	6.0 CFM
Features	-
Termination	2 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1608KL 01W B20 L00 1608KL01WB20L00 P13576 ND P13576ND P13576
