1641R-223K

RF Inductors 22 uH

product image

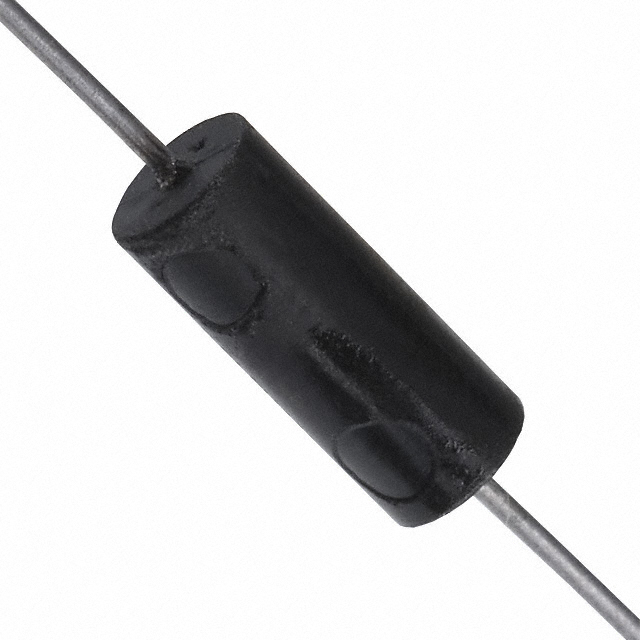

1641R-223K Picture
See larger image
SeekIC No. : 001225025 Detail

1641R-223K: RF Inductors 22 uH

1641R-223K Data Sheet

floor Price/Ceiling Price

US $ .58~.72 / Piece | Get Latest Price
Part Number:
1641R-223K
Mfg:
API Delevan
Supply Ability:
5000

Price Break

  • Qty
  • 0~650
  • 650~1000
  • 1000~2000
  • 2000~5000
  • Unit Price
  • $.72
  • $.65
  • $.62
  • $.58
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Inductance : 22 uH Tolerance : 10 %
Maximum DC Current : 295 mAmps Maximum DC Resistance : 0.96 Ohms
Self Resonant Frequency : 41 MHz Q Minimum : 45
Operating Temperature Range : - 55 C to + 105 C Termination Style : Axial

Description

Package / Case :
Tolerance : 10 %
Q Minimum : 45
Maximum DC Current : 295 mAmps
Termination Style : Axial
Operating Temperature Range : - 55 C to + 105 C
Inductance : 22 uH
Maximum DC Resistance : 0.96 Ohms
Self Resonant Frequency : 41 MHz


Parameters:

Technical/Catalog Information1641R-223K
VendorAPI Delevan Inc
CategoryInductors, Coils, Chokes
Inductance22H
Tolerance±10%
Package / CaseAxial
PackagingBulk
TypeFerrite Core
Current 295mA
Mounting TypeThrough Hole
Q @ Freq45 @ 2.5MHz
Self Resonant Freq41MHz
DC Resistance (DCR)960.0 mOhm Max
ShieldingShielded
ApplicationsGeneral Purpose
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 1641R 223K
1641R223K
DN42089 ND
DN42089ND
DN42089
