185223K400RGA-F, US $ .22-.22, 185223K400RGA-F DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002968533 Detail

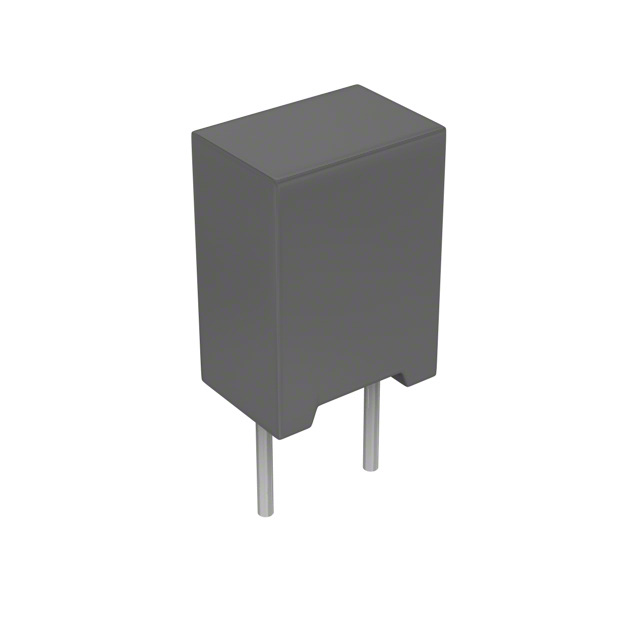

185223K400RGA-F: CAP FILM 0.022UF 400VDC RADIAL

185223K400RGA-F Data Sheet

US $ .22~.22 / Piece | Get Latest Price

Part Number:: 185223K400RGA-F
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~2400

Unit Price
$.22

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1852 evaluate
US $.03 - .06 / Piece

Cable Mounting & Accessories RDD 101 BLACK
1852 BK001 evaluate
US $65.32 - 75.53 / Piece

Wire - Single Conductor 28AWG 7/36 PVC 1000ft SPOOL BLACK
1852 BK005 evaluate
US $15.81 - 19.55 / Piece

Wire - Single Conductor 28AWG 7/36 PVC 100ft SPOOL BLACK

Product Details

Quick Details

Series:	185	Manufacturer:	Cornell Dubilier Electronics (CDE)
Capacitance:	0.022µF	Voltage Rating - AC:	200V
Voltage Rating - DC:	400V	Dielectric Material:	Polyester, Metallized
Tolerance:	±10%	ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C	Mounting Type:	Through Hole
Package / Case:	Radial	Width :	5.08 mm
Size / Dimension:	0.283" L x 0.197" W (7.20mm x 5.00mm)	Height - Seated (Max):	0.394" (10.00mm)
Termination:	PC Pins	Lead Spacing:	0.197" (5.00mm)
Features:	General Purpose	Applications:	-

Description

ESR (Equivalent Series Resistance): -
Mounting Type: Through Hole
Package / Case: Radial
Termination: PC Pins
Lead Spacing: 0.197" (5.00mm)
Features: General Purpose
Applications: -
Capacitance: 0.022µF
Dielectric Material: Polyester, Metallized
Operating Temperature: -55°C ~ 125°C
Tolerance: ±10%
Packaging: Tape & Reel (TR)
Voltage Rating - AC: 200V
Voltage Rating - DC: 400V
Height - Seated (Max): 0.394" (10.00mm)
Size / Dimension: 0.283" L x 0.197" W (7.20mm x 5.00mm)
Manufacturer: Cornell Dubilier Electronics (CDE)
Series: 185

Parameters:

Technical/Catalog Information	185223K400RGA-F
Vendor	Cornell Dubilier Electronics (CDE)
Category	Capacitors
Capacitance	0.022F
Voltage - Rated	400V
Tolerance	±10%
Dielectric Material	Metallized Polyester Film
Package / Case	Radial
Packaging	Bulk
Maximum Temperature	-55°C ~ 125°C
Lead Spacing	0.197" (5.00mm)
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Mounting Type	Through Hole
Features	General Purpose
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	185223K400RGA F 185223K400RGAF
