Product Details

Description



Features:

• 4V drive.

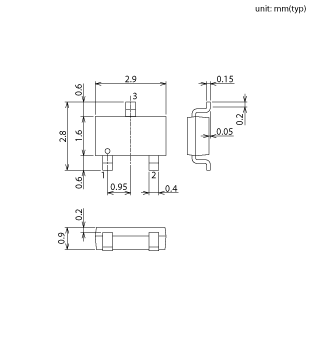

Pinout






Specifications

Parameter
Symbol

Conditions
Ratings
Unit
Drain-to-Source Voltage
VDSS
100
V
Gate-to-Source Voltage
VGSS
±20
V
Drain Current (DC)
ID
120
mA
Drainpeak Current(Pulse)
IDP
PW10s, duty cycle1%
480
mA
Allowable Power Dissipation
PD
 Mounted on a ceramic board (900mm2✕0.8mm)
0.6
W
Channel Temperature
Tch
150
Storage Temperature
Tstg
-55 to +150


Absolute maximum ratings
VDSS [V] 100
VGSS [V] 20
ID [A] 0.12
PD [W] 0.6
When mounted on ceramic substrate (900mm²*0.8mm)
Electrical characteristics
RDS(on) typ []
VGS=10V
ID [A]=0.06		 6.1
RDS(on) typ []
VGS=4V
ID [A]=0.03		 7
VGS(off) min [V] 1.2
VGS(off) max [V] 2.6
|yfs| typ [S] 0.175
Ciss typ [pF] 19
Qg typ [nC] 1.6
