Diodes (General Purpose, Power, Switching) vR/100V Io/150mA

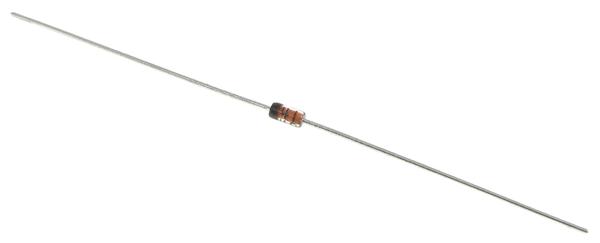

1N4148-TAP: Diodes (General Purpose, Power, Switching) vR/100V Io/150mA
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product : | Switching Diodes | Peak Reverse Voltage : | 100 V | ||
Forward Continuous Current : | 0.3 A | Max Surge Current : | 2 A | ||
Configuration : | Single | Recovery Time : | 8 ns | ||
Forward Voltage Drop : | 1 V | Maximum Reverse Leakage Current : | 5 uA | ||
Maximum Power Dissipation : | 500 mW | Operating Temperature Range : | - 65 C to + 175 C | ||
Package / Case : | DO-35-2 | Packaging : | Ammo |
