1N4454TR, US $ .01-.06 , Fairchild Semiconductor, 1N4454TR DataSheet download, circuit diagram from SeekIC.com

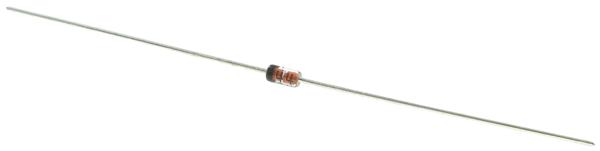

See larger image

SeekIC No. : 00168733 Detail

1N4454TR: Rectifiers Vr/75V Io/200mA T/R

1N4454TR Data Sheet

US $ .01~.06 / Piece | Get Latest Price

Part Number:: 1N4454TR
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.06
$.04
$.02
$.01

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1N4446 evaluate
Rectifiers Small Signal Diode
1N4446_Q evaluate
Rectifiers Small Signal Diode
1N4446_T50R evaluate
Rectifiers Small Signal Diode

Product Details

Quick Details

Product :	Ultra Fast Recovery Rectifiers	Configuration :	Single
Reverse Voltage :	75 V	Forward Voltage Drop :	1 V at 0.01 A
Recovery Time :	4 ns	Forward Continuous Current :	0.4 A
Max Surge Current :	4 A	Reverse Current IR :	0.1 uA
Mounting Style :	Through Hole	Package / Case :	DO-35
Packaging :	Reel

Description

Product : Ultra Fast Recovery Rectifiers
Reverse Current IR : 0.1 uA
Packaging : Reel
Configuration : Single
Mounting Style : Through Hole
Recovery Time : 4 ns
Max Surge Current : 4 A
Package / Case : DO-35
Forward Voltage Drop : 1 V at 0.01 A
Reverse Voltage : 75 V
Forward Continuous Current : 0.4 A

Parameters:

Technical/Catalog Information	1N4454TR
Vendor	Fairchild Optoelectronics Group
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	50V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 10mA
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	100nA @ 50V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Tape & Reel (TR)
Capacitance @ Vr, F	4pF @ 0V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1N4454TR 1N4454TR
