1N459ATR

Rectifiers High Conductance Low Leakage

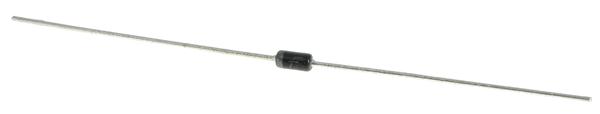

product image

1N459ATR Picture
See larger image
SeekIC No. : 00168115 Detail

1N459ATR: Rectifiers High Conductance Low Leakage

1N459ATR Data Sheet

floor Price/Ceiling Price

US $ .01~.08 / Piece | Get Latest Price
Part Number:
1N459ATR
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.08
  • $.07
  • $.01
  • $.01
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Standard Recovery Rectifiers Configuration : Single
Reverse Voltage : 200 V Forward Voltage Drop : 1 V at 0.3 A
Forward Continuous Current : 0.5 A Max Surge Current : 4 A
Reverse Current IR : 0.025 uA Mounting Style : Through Hole
Package / Case : DO-35 Packaging : Reel

Description

Recovery Time :
Packaging : Reel
Configuration : Single
Reverse Voltage : 200 V
Product : Standard Recovery Rectifiers
Mounting Style : Through Hole
Max Surge Current : 4 A
Package / Case : DO-35
Forward Continuous Current : 0.5 A
Reverse Current IR : 0.025 uA
Forward Voltage Drop : 1 V at 0.3 A


Parameters:

Technical/Catalog Information1N459ATR
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io)500mA
Voltage - Forward (Vf) (Max) @ If1V @ 100mA
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr25nA @ 175V
SpeedStandard Recovery >500ns, > 200mA (Io)
Mounting TypeThrough Hole, Axial
Package / CaseDO-35, Axial
PackagingTape & Reel (TR)
Capacitance @ Vr, F6pF @ 0V, 1MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 1N459ATR
1N459ATR
