1N5404

Rectifiers 3.0a Rectifier General Purpose

product image

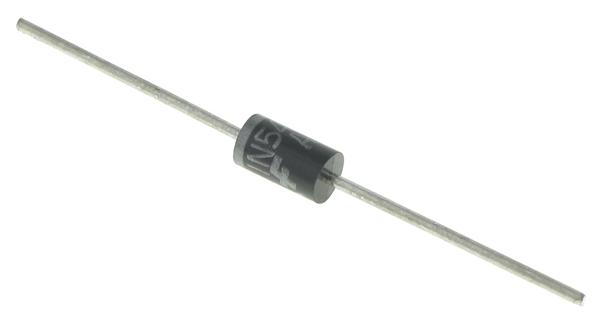

1N5404 Picture
See larger image
SeekIC No. : 00168398 Detail

1N5404: Rectifiers 3.0a Rectifier General Purpose

1N5404 Data Sheet

floor Price/Ceiling Price

US $ .08~.13 / Piece | Get Latest Price
Part Number:
1N5404
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.13
  • $.12
  • $.1
  • $.08
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Standard Recovery Rectifiers Configuration : Single
Reverse Voltage : 400 V Forward Voltage Drop : 1.2 V
Forward Continuous Current : 3 A Max Surge Current : 200 A
Reverse Current IR : 5 uA Mounting Style : Through Hole
Package / Case : DO-201AD Packaging : Reel

Description

Recovery Time :
Packaging : Reel
Configuration : Single
Reverse Current IR : 5 uA
Product : Standard Recovery Rectifiers
Forward Continuous Current : 3 A
Mounting Style : Through Hole
Max Surge Current : 200 A
Reverse Voltage : 400 V
Forward Voltage Drop : 1.2 V
Package / Case : DO-201AD


Specifications

Part Number 1N5404
Total Capacitance
CT (pF)		 50
Max Average
Rectified Current
IO (A)		 3
Peak Repetitive
Reverse Voltage
VRRM (V)		 400
Peak Forward
Surge Current
IFSM (A)		 200
Forward Voltage Drop
VF (V)		 1
Max Reverse Current
IR (µA)		 10


Rating Symbol 1N5400 1N5401 1N5402 1N5404 1N5406 1N5407 1N5408 Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage		 VRRM
VRWM
VR		 50 100 200 400 600 800 1000 Volts
Nonrepetitive Peak Reverse Voltage VRSM 100 200 300 525 800 1000 1200 Volts
Average Rectified Forward Current
(Single Phase Resistive Load,
1/2, Leads, TL = 105°C)		 IO 3.0 Amp
Nonrepetitive Peak Surge Current
(Surge Applied at Rated Load Conditions)		 IFSM 200 (one cycle) Amp
Operating and Storage Junction
Temperature Range		 TJ
Tstg		 65 to +170
65 to +175		 °C





Parameters:

Technical/Catalog Information1N5404
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)400V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If1V @ 3A
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr10A @ 400V
SpeedStandard Recovery >500ns, > 200mA (Io)
Mounting TypeThrough Hole, Axial
Package / CaseDO-201AD, Axial
PackagingBulk
Capacitance @ Vr, F-
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 1N5404
1N5404
1N5404OS ND
1N5404OSND
1N5404OS



Customers Who Bought This Item Also Bought
