Position: Home  > All Categories> Integrated Circuits (ICs) > 1N6278ARL4

1N6278ARL4

TVS Diodes - Transient Voltage Suppressors 20V 1500W

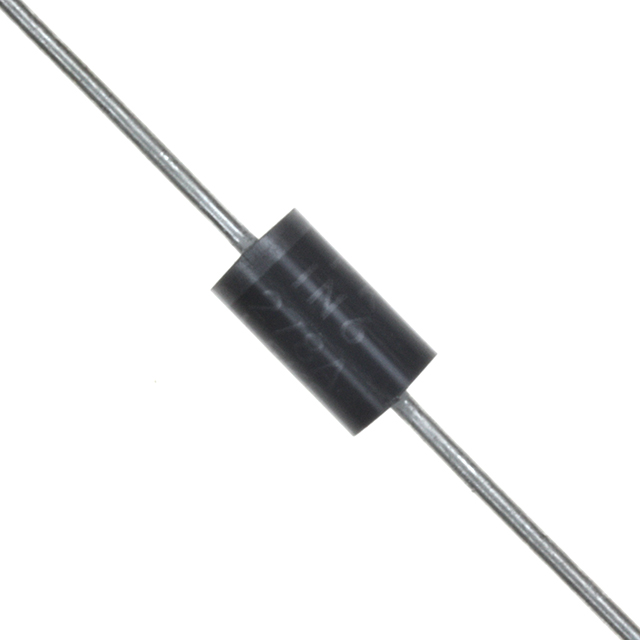

product image

1N6278ARL4 Picture
See larger image
SeekIC No. : 00258011 Detail

1N6278ARL4: TVS Diodes - Transient Voltage Suppressors 20V 1500W

1N6278ARL4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
1N6278ARL4
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Polarity : Unidirectional Channels : 1 Channel
Clamping Voltage : 27.7 V Operating Voltage : 17.1 V
Package / Case : Case 41A-04 Breakdown Voltage : 19 V
Peak Surge Current : 54 A Peak Pulse Power Dissipation : 1500 W
Maximum Operating Temperature : + 175 C Minimum Operating Temperature : - 65 C
Packaging : Reel

Description

Termination Style :
Capacitance :
Polarity : Unidirectional
Peak Pulse Power Dissipation : 1500 W
Packaging : Reel
Channels : 1 Channel
Minimum Operating Temperature : - 65 C
Maximum Operating Temperature : + 175 C
Package / Case : Case 41A-04
Clamping Voltage : 27.7 V
Operating Voltage : 17.1 V
Breakdown Voltage : 19 V
Peak Surge Current : 54 A


Parameters:

Technical/Catalog Information1N6278ARL4
VendorON Semiconductor
CategoryCircuit Protection
Package / CaseAxial
PackagingTape & Reel (TR)
PolarizationUnidirectional
Power (Watts)1500W
Voltage - Reverse Standoff (Typ)17.1V
Voltage - Breakdown19V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 1N6278ARL4
1N6278ARL4
