1N914ATR

Rectifiers Hi Conductance Fast

product image

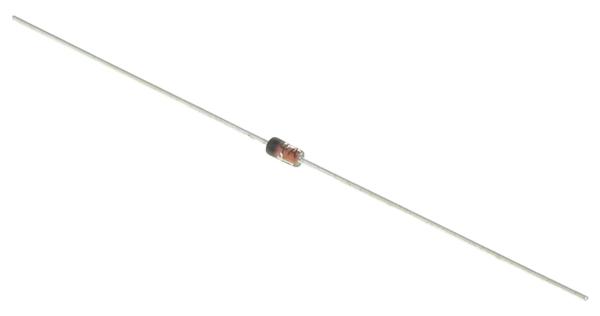

1N914ATR Picture
See larger image
SeekIC No. : 00168000 Detail

1N914ATR: Rectifiers Hi Conductance Fast

1N914ATR Data Sheet

floor Price/Ceiling Price

US $ .01~.06 / Piece | Get Latest Price
Part Number:
1N914ATR
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.06
  • $.03
  • $.02
  • $.01
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Ultra Fast Recovery Rectifiers Configuration : Single
Reverse Voltage : 100 V Forward Voltage Drop : 1 V at 0.02 A
Recovery Time : 4 ns Forward Continuous Current : 0.3 A
Max Surge Current : 4 A Reverse Current IR : 5 uA at 75 V
Mounting Style : Through Hole Package / Case : DO-35
Packaging : Reel

Description

Product : Ultra Fast Recovery Rectifiers
Packaging : Reel
Configuration : Single
Mounting Style : Through Hole
Recovery Time : 4 ns
Reverse Voltage : 100 V
Forward Voltage Drop : 1 V at 0.02 A
Forward Continuous Current : 0.3 A
Max Surge Current : 4 A
Reverse Current IR : 5 uA at 75 V
Package / Case : DO-35


Parameters:

Technical/Catalog Information1N914ATR
VendorFairchild Optoelectronics Group
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)100V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If1V @ 20mA
Reverse Recovery Time (trr)4ns
Current - Reverse Leakage @ Vr5A @ 75V
SpeedSmall Signal =< 200mA (Io), Any Speed
Mounting TypeThrough Hole, Axial
Package / CaseDO-35, Axial
PackagingTape & Reel (TR)
Capacitance @ Vr, F4pF @ 0V, 1MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 1N914ATR
1N914ATR
