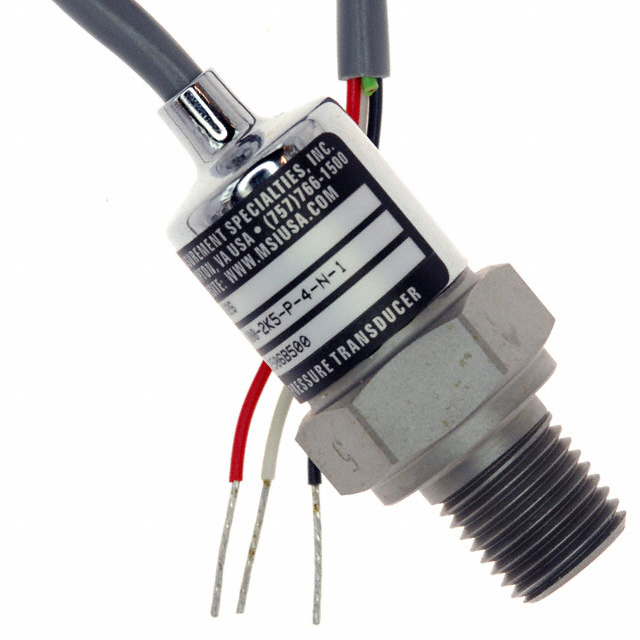

2000226

Pressure Type: Gauge
Sensing Distance: -
Sensor Type: -
Sensing Object: -
Response Frequency: -
Accuracy: -
Material - Body: -
Shielding: -
Output Type: -
Terminal Type: -
Operating Temperature: -20°C ~ 85°C
Package / Case: Stainless Steel
Voltage - Supply: 8 V ~ 30 V
Port Size: Male, 1/4" (6.35mm) NPT
Termination Style: Cable
Manufacturer: Measurement Specialties Inc.
Series: MSP300
Operating Pressure: 2500 PSI
Output: 1 ~ 5 V


Parameters:

Technical/Catalog Information	2000226
Vendor	Measurement Specialties
Category	Sensors, Sensor Evaluation Kits
Type	Gage
Pressure Range	0 ~ 2500psi
Linearity Tolerance	1.00 % [Max]
Supply Voltage Typical	12.00 VDC [Nom]
Supply Voltage Typical	24.00 VDC [Nom]
Termination Style	Cable Leads
Input Connection	Threaded
Output Type	Linear Voltage
Output Voltage	1.000 V [Min]
Output Voltage	5.000 V [Max]
Operating Temperature	-20 °C [Min]
Operating Temperature	85 °C [Max]
Thread	1/4-18 NPT
Cable Length	2.000 ft [Typ]
Sensing Temperature	0 ~ 55°C
RoHS Status	RoHS Non-Compliant
Other Names	2000226 2000226 MSP3252P3 ND MSP3252P3ND MSP3252P3
