Product Details

Description



Features:

LINEAR CURRENT LIMITATION
THERMAL SHUT DOWN
SHORT CIRCUIT PROTECTION
INTEGRATED CLAMP
LOW CURRENT DRAWN FROM INPUT PIN
DIAGNOSTIC FEEDBACK THROUGH INPUT PIN
 ESD PROTECTION
DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING)
COMPATIBLE WITH STANDARD POWER MOSFET


Pinout

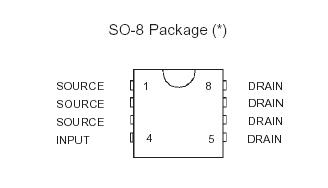

Connection Diagram


Specifications

Parameter
Symbol
Value
Einheit
Unit
SO-8 DPAK TO-220 IPAK D2PAK
Drain-source Voltage (VIN=0V)
VDS
Internally Clamped
°C
Input Voltage
 VIN
Internally Clamped

°C
Input Current
 IIN
+/-20

°C
Minimum Input Series Impedance
RIN MIN
10
mA
Drain Current

ID
Internally Clamped
MA
Reverse DC Output Current
IR
-15
mW
Electrostatic Discharge (R=1.5KW, C=100pF)
VESD1
4000
K/W
Electrostatic Discharge on output pin only
(R=330W, C=150pF)
VESD2
16500
K/W
Total Dissipation at Tc=25°C
P tot
8.3
50
70
50
70
K/W
Operating Junction Temperature
Tc
Internally limited
K/W
Storage Temperature
Tstg
-55 to 150
K/W



Description

The VNB14NV04, VND14NV04, VND14NV04-1, VNP14NV04, VNS14NV04, are monolithic devices designed in STMicroelectronics VIPower M0-3 Technology, VNB14NV04, VND14NV04, VND14NV04-1, VNP14NV04, VNS14NV04, are intended for replacement ofstandard Power MOSFETS from DC up to 50KHz applications.Built in thermal shutdown, linear current limitation |and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
