Product Details

Description



Features:

1.65 to 3.6V inputs and outputs
High speed:
tPD = 3.4ns (Max) at VCC = 3.0 to 3.6V
tPD = 4.8ns (Max) at VCC = 2.3 to 2.7V
Symmetrical impedance outputs:
|IOH| = IOL = 12mA (Min) at VCC = 3.0V
|IOH| = IOL = 8mA (Min) at VCC = 2.3V
Power down protection on inputs and outputs
26 serie resistors in outputs
Operating voltage range:
VCC(Opr) = 1.65V to 3.6V
Pin and function compatible with 54 SERIES 162374
Bus hold provided on both sides
Cold spare function
Latch-up performance exceeds 00mA (JESD 17)
ESD performance:
HBM > 2000V
(MIL STD 883 method 3015); MM > 200V
300KRad Mil1019.6 Condition A, (RHA QML ualification extension undergone)
No SEL, no SEU under 72 Mev/cm2/mg LET eavy ions irradiation
QML qualified product
Device fully compliant with SCC SMD 5962-05212

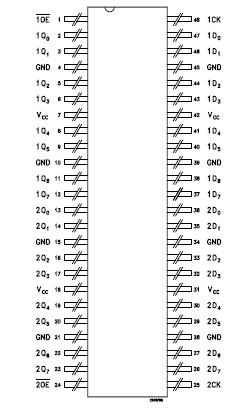

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply voltage
-0.5 to +4.6
V
VI
DC input voltage
-0.5 to +4.6
V
VO
DC output voltage (OFF State)
-0.5 to +4.6
V
VO
 DC output voltage (High or Low State) (1)
-0.5 to VCC + 0.5
V
IIK
DC input diode current
- 50
mA
IOK
 DC output diode current (2)
- 50
mA
IO
 DC output current
± 50
mA
ICC or
IGND
DC VCC or ground current per supply pin
±100
mA
PD
 Power dissipation
400
mW
Tstg
 Storage temperature
-65 to +150
°C
TL
Lead temperature (10 sec)
260
°C



Description

The 54VCXH162374 is a low voltage CMOS 16 it d-type Flip-Flop with 3 state outputs non nverting fabricated with sub-micron silicon gate nd five-layer metal wiring C2MOS technology. 54VCXH162374 is ideal for low power and very high speed 1.65 to .6V applications; it can be interfaced to 3.6V ignal environment for both inputs and outputs.

54VCXH162374 is controlled by wo clock inputs (nCK) and two output enable nputs (nOE).

On the positive transition of the (nCK), the 54VCXH162374 will be set to the logic state that were etup at the nD inputs.

While the (nOE) input is low, the 8 outputs (nQ) ill be in a normal state (HIGH or LOW logic level) nd while high level the outputs will be in a high mpedance state.

Any output control does not affect the internal peration of flip flops; that is, the old data can be etained or the new data can be entered even hile the outputs are OFF.
