24AA01

Features: • Single supply with operation down to 1.8V• Low power CMOS technology- 1 mA active current typical- 10mA standby current typical at 5.5V- 3mA standby current typical at 1.8V• Organized as a single block of 128 bytes (128 x 8)or 256 bytes (256 x 8)• 2-wire serial ...

product image

24AA01 Picture
SeekIC No. : 004216744 Detail

24AA01: Features: • Single supply with operation down to 1.8V• Low power CMOS technology- 1 mA active current typical- 10mA standby current typical at 5.5V- 3mA standby current typical at 1.8V&#...

floor Price/Ceiling Price

Part Number:
24AA01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single supply with operation down to 1.8V
• Low power CMOS technology
- 1 mA active current typical
- 10mA standby current typical at 5.5V
- 3mA standby current typical at 1.8V
• Organized as a single block of 128 bytes (128 x 8)or 256 bytes (256 x 8)
• 2-wire serial interface bus,I2CTM compatible
• Schmitt trigger, filtered inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (1.8V) and 400 kHz (5V) compatibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 8 bytes
• 2 ms typical write cycle time for page-write
• Hardware write protect for entire memory
• Can be operated as a serial ROM
• ESD protection > 3,000V
• 10,000,000 ERASE/WRITE cycles guaranteed on 24AA01
• 1,000,000 ERASE/WRITE cycles guaranteed on 24AA02
• Data retention > 200 years
• 8-pin DIP or SOIC package
• Available for extended temperature ranges
- Commercial (C): 0°C to +70°C
- Industrial (I) -40°C to +85°C






Pinout

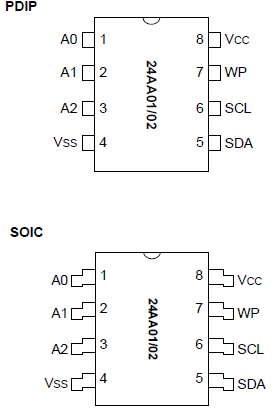

  Connection Diagram




Specifications

Parameter Name Value
Density 1K bits (x8)
Max. Clock Freq. 400 kHz
Page Size (bytes) 8
Write Protect Whole Array
Endurance 1,000,000
Op. Volt Range (V) 1.7 to 5.5
Temp Range (°C) -40°C to +85°C


VCC.........................................................................................................6.5V
All inputs and outputs w.r.t. VSS .................................... -0.3V to VCC +1.0V
Storage temperature ........................................................65°C to +150°C
Ambient temperature with power applied........................-65°C to +125°C
ESD protection on all pins .................................................................. 4 kV





Description

The Microchip Technology Inc. 24AA01/24LC01B (24XX01*) is a 1 Kbit Electrically Erasable PROM. The device 24AA01 is organized as one block of 128 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 A and 1 mA, respectively. The 24XX01 also has a page write capability for up to 8 bytes of data. The 24XX01 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages, and is also available in the 5-lead SOT-23 package.

The Microchip Technology Inc. 24AA01 and 24AA02 are 1K bit and 2K bit Electrically Erasable PROMs. The devices are organized as a single block of 128 x 8-bit or 256 x 8-bit memory with a two wire serial interface.Low-voltage design permits operation down to 1.8 volts with standby and active currents of only 3mA and 1 mA,respectively. The 24AA01 and 24AA02 also have pagewrite capability for up to 8 bytes of data. The 24AA01 and 24AA02 are available in the standard 8-pin DIP and 8-pin surface mount SOIC packages.
