24AA025

Features:

`Single supply with operation from 1.8V to 5.5V
`Low-power CMOS technology:
-1 mA active current, typical
-1 A standby current, typical at 5.5V
`Organized as a single block of 256 bytes (256 x 8)
`Hardware write protection for entire array (24XX024)
`2-wire serial interface bus, I<sup>2</sup>C<sup>TM</sup> compatible
`100kHz and 400kHz clock compatibility
`Page write buffer for up to 16 bytes
`Self-timed write cycle (including auto-erase)
`10 ms max. write cycle time
`Address lines allow up to eight devices on bus
`1,000,000 erase/write cycles
`ESD protection > 4,000V
`Data retention > 200 years
`8-pin PDIP, SOIC, TSSOP, DFN and MSOP packages
`Available for extended temperature ranges:
-Industrial (I): -40 to +85

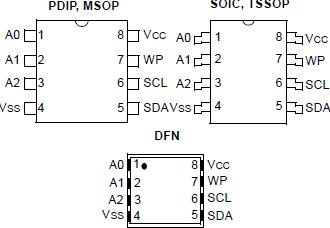

Pinout






Specifications

Parameter Name	Value
Density	2K Bits (x8)
Max. Clock Freq.	400 kHz
Page Size (bytes)	16
Endurance	1,000,000
Op. Volt Range (V)	1.7 to 5.5
Temp Range (°C)	-40°C to +85°C

Absolute Maximum Ratings *
V_CC................................................................................................................6.5V
All inputs and outputs w.r.t. V_SS ...........................................-0.6V to V_CC +1.0V
Storage temperature..................................................................-65 to +150
Ambient temperature with power applied...................................-40 to +125
ESD protection on all pins............................................................................. 4 kV
* NOTICE: Stresses above those listed under 'Absolute Maximum Ratings' may cause permanent damage to t
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for
extended periods may affect device reliability.

Description

The Microchip Technology Inc. 24AA025 is a 2 Kbit Serial Electrically Erasable PROM with a voltage range of 1.7V to 5.5V. The device is organized as a single block of 256 x 8-bit memory with a 2-wire serial interface. Low currentdesign permits operation with typical standby andactive currents of only 1 A and 1 mA, respectively.The device has a page write capability for up to 16bytes of data. Functional address lines allow theconnection of up to eight 24AA025 devices on the same bus for up to 16K bits of contiguous EEPROM memory. The deviceis 24AA025 available in the standard 8-pin PDIP, 8-pin SOIC(3.90 mm), TSSOP, 2x3 DFN and TDFN and MSOP packages.
