250 MHz1000 MHz

Features: `250 MHz1000 MHz Operating Frequency`+2.5 dBm P1 dB @ 800 MHz`155 dBm/Hz Noise Floor`0.5 Degree RMS Phase Error (IS95)`0.2 dB Amplitude Balance`Single 2.7 V5.5 V Supply`Pin-Compatible with AD8346`16-Lead Exposed Paddle TSSOP PackageApplication·Cellular Communication Systems·W-CDMA/CDMA/G...

product image

250 MHz1000 MHz Picture
SeekIC No. : 004216928 Detail

250 MHz1000 MHz: Features: `250 MHz1000 MHz Operating Frequency`+2.5 dBm P1 dB @ 800 MHz`155 dBm/Hz Noise Floor`0.5 Degree RMS Phase Error (IS95)`0.2 dB Amplitude Balance`Single 2.7 V5.5 V Supply`Pin-Compatible with...

floor Price/Ceiling Price

Part Number:
250 MHz1000 MHz
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2020/3/31

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`250 MHz1000 MHz Operating Frequency
`+2.5 dBm P1 dB @ 800 MHz
`155 dBm/Hz Noise Floor
`0.5 Degree RMS Phase Error (IS95)
`0.2 dB Amplitude Balance
`Single 2.7 V5.5 V Supply
`Pin-Compatible with AD8346
`16-Lead Exposed Paddle TSSOP Package



Application

·Cellular Communication Systems
·W-CDMA/CDMA/GSM/PCS/ISM Transceivers
·Fixed Broadband Access Systems LMDS/MMDS
·Wireless LAN
·Wireless Local Loop
·Digital TV/CATV Modulators
·Single Sideband Upconverter



Pinout

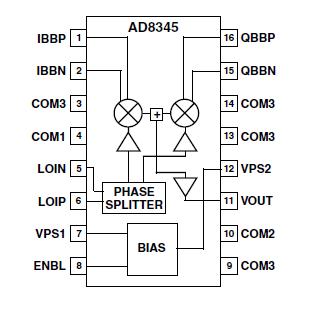

  Connection Diagram


Specifications

Supply Voltage VPS1, VPS2 ..........................5.5 V
Input Power LOIP, LOIN (re 50 )  .....................10 dBm
IBBP, IBBN, QBBP, QBBN......................... 0 V, 2.5 V
Internal Power Dissipation  ........................ 500 mW
JA (Exposed Paddle Soldered Down)...................30°C/W
JA (Exposed Paddle not Soldered Down)   ................95°C/W
Maximum Junction Temperature   ......................150°C
Operating Temperature Range  .................40°C to +85°C
Storage Temperature Range  ................. 65°C to +150°C
Lead Temperature Range (Soldering 60 sec) ................300°C
