2540

Size :
Material : Nylon
Color : Black
Mounting Method : Panel
Type : Bushing


Features:

 1.8 A Continuous Output Current
Output Voltage to 50 V
TTL and 5 V CMOS Compatible Inputs
Efficient Input/Output Pinning
Integral Transient-Suppression Diodes
Replaces L6221A and L6221CD

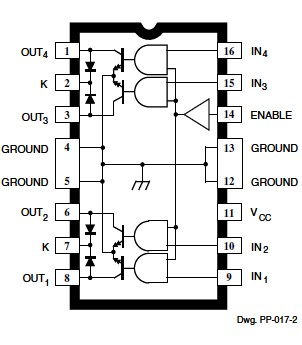

Pinout




Specifications

Output Voltage, V_OUT ........................... 50 V
Output Current, I_OUT (peak) ................2.5 A
       (continuous) ..................................1.8 A
Logic Supply Voltage, V_CC ....................7.0 V
Input Voltage, V_IN ................................7.0 V
Package Power Dissipation,
       P_D ........................................ See Graph
Operating Temperature Range,
      T_A .................................. -20°C to +85°C
Storage Temperature Range,
      T_S ................................ -55°C to +150°C


Description

Combining AND logic gates and inverting high-current bipolar outputs, the UDN2540B and A2540SLB quad Darlington power drivers provide interface between low-level signal-processing circuits and power loads totaling 360 W. Each of the four independent outputs can sink up to 1.8 A in the on state with peak inrush currents to 2.5 A. The four power outputs are each comprised of an open-collector Darlington driver and an internal flyback/clamp diode for switching inductive leads.  UDN2540B and A2540SLB  feature a minimum breakdown and sustaining voltage of 50 V. The logic inputs are compatible with TTL and 5 V CMOS logic systems.

Typical applications include print heads, relays, solenoids, and dc stepping motors. These drivers can also be used to drive highcurrent incandescent lamps, LEDS, and heaters.  UDN2540B and A2540SLB  specifically intended for driving a unipolar stepper motor in the two-phase drive format.

The  UDN2540B and A2540SLB  is supplied in a 16-pin and 20-lead batwing power SOIC for surfacemount applications. The batwing construction provides for maximum package power dissipation in a standard construction. At 25°C, and with only 1 sq. in. of copper foil at the ground tabs, either package is capable of safely dissipating more than 2 W.


Parameters:

Technical/Catalog Information	2540
Vendor	B&K Precision
Category	Test Equipment
Bandwidth	60MHz
Channels	Dual
Display Type	LCD - Color
Features	Software Controllable, USB Port, Waveform Capture
Includes	Software, USB Cable
Input Impedance	1M - 19pF
Voltage - Input, Max	400Vpeak
Rise Time (Typ)	5.83nS
Probe Type	PR-37A x1/x10/Ref Probes (2)
Sampling Rate (Per Second)	1GSa/s
Type	Bench, Digital
Voltage - Supply	100 ~ 240VAC
Lead Free Status	Contains Lead
RoHS Status	RoHS Not Applicable
Other Names	2540 2540 BK2540 ND BK2540ND BK2540
