2549

Features:

 600 mA Output Current per Channel
Independent Over-Current Protection for Each Driver
Thermal Protection for Device and Each Driver
Low Output-Saturation Voltage
Integral Output Flyback Diodes
TTL and 5 V CMOS Compatible Inputs
Pin-Compatible With UDN2543B/EB

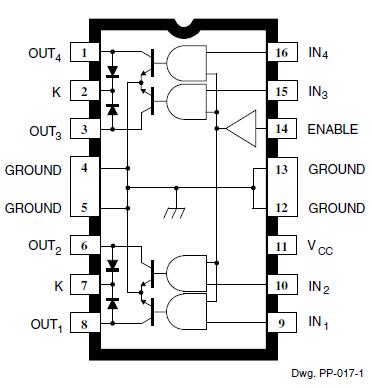

Pinout




Specifications

Output Voltage, V_OUT . . . . . . . . . . . .. 60 V
Over-Current Protected Output Voltage,
      V_OUT . . . . . . . . . . . . . . . . . . . . . .. 25 V
Output Current, I_OUT . . . . . . . . . .  . .1.0 A*
Supply Voltage, V_CC . . . . . . . . . . . . . 7.0 V
Input Voltage, V_IN or V_EN . . . . . . . . . .7.0 V
Package Power Dissipation,
      P_D . . . . . . . . . . . . . . . . . . .  See Graph
Operating Temperature Range, T_A
      Prefix 'UDK' . . . . . . . . .-40 to +125
      Prefix 'UDN' . . . . . . . . .  -20 to +85
      Prefix 'UDQ' . . . . . . . . .  -40 to +85
Storage Temperature Range,
      T_S . . . . . . . . . . . . . . . .-55 to +150


Description

Providing improved output current limiting, the UDK/UDN/ UDQ2549B and UDK/UDN/UDQ2549EB quad power drivers combine AND logic gates and high-current bipolar outputs with complete output protection. Each of the four outputs will sink 600 mA in the on state. The outputs have a minimum breakdown voltage (load dump) of 60 V and a sustaining voltage of 40 V. The inputs are compatible with TTL and 5 V CMOS logic systems.

Over-current protection for each channel has been designed into  UDK/UDN/ UDQ2549B and UDK/UDN/UDQ2549EB and is activated at approximately 1 A.  UDK/UDN/ UDQ2549B and UDK/UDN/UDQ2549EB  protect each output from short circuits with supply voltages up to 25 V. When an output current trip point is reached, that output stage is driven linearly resulting in a reduced output current level. If an over-current or short circuit condition continues, the thermal limiting circuits will first sense the rise in junction temperature and then the rise in chip temperature, further decreasing the output current. Under worst-case conditions, the  UDK/UDN/ UDQ2549B and UDK/UDN/UDQ2549EB in this family will tolerate short-circuits on all outputs, simultaneously.

 UDK/UDN/ UDQ2549B and UDK/UDN/UDQ2549EB  can be used to drive various loads including incandescent lamps (without warming or limiting resistors) or inductive loads such as relays, solenoids, or dc stepping motors.

The  UDK/UDN/ UDQ2549B and UDK/UDN/UDQ2549EB  are 16-pin power DIPs while the suffix 'EB'devices are 28-lead power PLCCs for surface-mount applications. Both packages are of batwing construction to provide for maximum package power dissipation.
