25LC020A

Features: • 10 MHz max. clock frequency• Low-power CMOS technology:- Max. Write Current: 5 mA at 5.5V, 10 MHz- Read Current: 5 mA at 5.5V, 10 MHz- Standby Current: 5 A at 5.5V• 256 x 8-bit organization• Write Page mode (up to 16 bytes)• Sequential Read• Self-tim...

product image

25LC020A Picture
See larger image
SeekIC No. : 004217479 Detail

25LC020A: Features: • 10 MHz max. clock frequency• Low-power CMOS technology:- Max. Write Current: 5 mA at 5.5V, 10 MHz- Read Current: 5 mA at 5.5V, 10 MHz- Standby Current: 5 A at 5.5V• 256...

25LC020A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
25LC020A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 10 MHz max. clock frequency
• Low-power CMOS technology:
- Max. Write Current: 5 mA at 5.5V, 10 MHz
- Read Current: 5 mA at 5.5V, 10 MHz
- Standby Current: 5 A at 5.5V
• 256 x 8-bit organization
• Write Page mode (up to 16 bytes)
• Sequential Read
• Self-timed Erase and Write cycles (5 ms max.)
• Block Write protection:
- Protect none, 1/4, 1/2 or all of array
• Built-in Write protection:
- Power-on/off data protection circuitry
- Write enable latch
- Write-protect pin
• High reliability:
- Endurance: 1,000,000 Erase/Write cycles
- Data retention: > 200 years
- ESD protection: > 4000V
• Temperature ranges supported:
- Industrial (I): -40°C to +85°C
- Automotive (E): -40°C to +125°C
• Pb-Free packages available

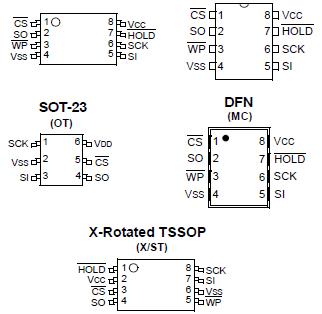

Pinout

Connection Diagram




Specifications

Parameter Name Value
Density 2 Kbit (x8)
Max. Clock Freq. 10 MHz
Page Size (bytes) 16
Write Protect Quarter, Half, Whole Array
Endurance 1,000,000
Op. Volt Range (V) 2.5 to 5.5
Temp Range (°C) -40°C to +125°C


Absolute Maximum Ratings(†)
VCC.....................................................................................6.5V
All inputs and outputs w.r.t. VSS................ -0.6V to VCC +1.0V
Storage temperature .....................................-65°C to 150°C
Ambient temperature under bias....................-40°C to 125°C
ESD protection on all pins....................................................4 kV

† NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for an
extended period of time may affect device reliability.




Description

The Microchip Technology Inc. 25XX020A* is a 2 Kbit Serial Electrically Erasable Programmable Read-Only Memory (EEPROM). The memory is accessed via a simple Serial Peripheral Interface™ (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input.

Communication to 25XX020A* can be paused via the hold pin (HOLD). While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priorityinterrupts.

The 25XX020A* is available in standard packages including 8-lead PDIP and SOIC, and advanced packages including 8-lead MSOP, 8-lead TSSOP and rotated TSSOP, 8-lead 2x3 DFN, and 6-lead SOT-23.
