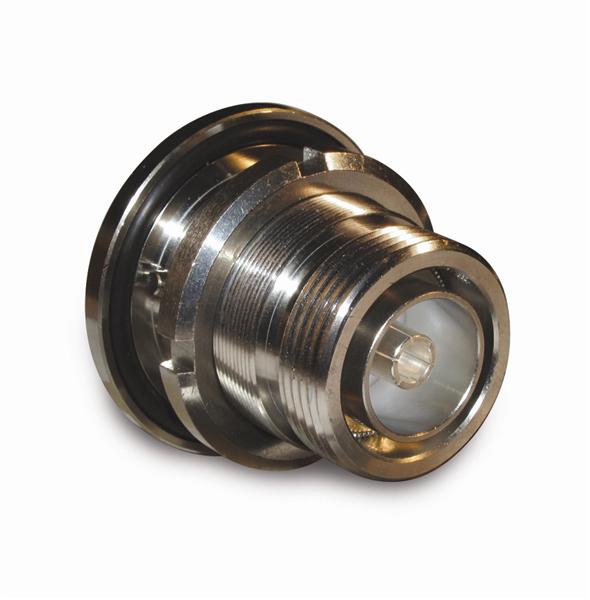

272174: RF Adapters - In Series 7/16 JACK TO JACK BLKHEAD ADAPTER

272174 Data Sheet

US $ 30.75~36.63 / Piece | Get Latest Price

Part Number:: 272174
Mfg:: Amphenol Connex
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~100

Unit Price
$36.63
$34.65
$32.91
$30.75

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

27210 evaluate
Screwdrivers, Nut drivers & Socket Drivers Precision ESD Safe Slotted Screwdriver 1.0 x 40mm
272101 evaluate
US $22.48 - 24.52 / Piece

RF Connectors 7/16 PANEL JACK .250 S/R 4 HOLE
2721015 evaluate
US $630.7 - 667.8 / Piece

Terminal Block Interface Modules IB ST 24 BAI 8/U

Product Details

Quick Details

RF Series :	7/16	Side 1 Gender :	Jack (Female)
Side 1 Polarity :	Normal	Side 2 Gender :	Jack (Female)
Side 2 Polarity :	Normal	Impedance :	50 Ohms
Body Style :	Bulkhead	Adapter Style :	Straight
Frequency Range :	DC to 7.5 GHz	Contact Plating :	Silver
Shell Plating :	White Bronze	Body Material :	Brass

Description

Side 1 Gender : Jack (Female)
Side 1 Polarity : Normal
Side 2 Gender : Jack (Female)
Side 2 Polarity : Normal
Impedance : 50 Ohms
Adapter Style : Straight
Body Material : Brass
Body Style : Bulkhead
Contact Plating : Silver
Shell Plating : White Bronze
RF Series : 7/16
Frequency Range : DC to 7.5 GHz

Parameters:

Technical/Catalog Information	272174
Vendor	Amphenol Connex
Category	Connectors
Convert From (Adapter End)	7/16 Jack, Female Socket
Convert To (Adapter End)	7/16 Jack, Female Socket
Features	Bulkhead
Style	Straight
Mounting Type	Panel Mount
Impedance	50 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	272174 272174 ACX1547 ND ACX1547ND ACX1547
