Part Number: 27C010T
Description: Maxwell Technologies' 27C010T high density 1 Megabit One-time Programmable Electrically Programmable Read Only Memory m...
- Table of contents:
27C010T
-
Suppliers
DataSheet
General Description
27C010T General Description
Maxwell Technologies' 27C010T high density 1 Megabit One-time Programmable Electrically Programmable Read Only Memory microcircuit features a greater than 100 krad (Si) total dose tolerance, depending upon space mission. The 27C010T features fast address times and low power dissipation. The 27C010T offers high speed programming using page programming mode. The 27C010T is offered in JEDEC-Standard Byte-Wide EPROM pinouts, which allows socket replacement with Flash Memory and Mask ROMs.
Maxwell Technologies' patented RAD-PAK® packaging technology incorporates radiation shielding in the microcircuit package. It eliminates the need for box shielding while providing the required radiation shielding for a lifetime in orbit or space mission. In a GEO orbit, RAD-PAK provides greater than 100 krad (Si) radiation dose toleran
27C010T Maximum Ratings
|
PARAMETER |
SYMBOL |
MIN |
MAX |
UNIT |
|
VCC Supply Voltage 1 |
VCC |
-0.6 |
7.0 |
V |
|
Programming Voltage 1 |
VPP |
-0.6 |
13.5 |
V |
|
All Input and Output Voltage 1,2 |
VIN, VOUT |
-0.6 |
7.0 |
V |
|
A9 Voltage 2 |
VID |
-0.6 |
13.0 |
V |
|
OperatingTemperature Range |
TA |
-55 |
+125 |
|
|
Storage Temperature Range |
TS |
-65 |
+150 |
27C010T Features
• 128k x 8 Bit OTP EPROM organization
• RAD-PAK® radiation-hardened against natural space radiation
• Total dose hardness:
- >100 krad (Si), depending upon space mission
• Excellent Single Event Effects:
- SELTH LET: > 80 MeV/mg/cm2
- SEUTH LET (read mode): >80 Mev/mg/cm2
• Package:
- 32 pin RAD-PAK® flat pack
- Weight - 6.0 grams
• Fast access time:
- 120, 150, 200 ns (max) times available
• Low power consumption:
- Active mode: 50 mW/MHz (typ)
- Standby mode: 5W (typ)
• High speed page and word programming:
- Page programming time: 14 sec (typ)
• Programming power supply:
- VPP = 12.5 V ± 0.3 V
• One-time Programmable
• Pin Arrangement
- JEDEC standard byte-wide EPROM
- Flash memory and mask ROM compatible
• RAD-PAK® radiation-hardened against natural space radiation
• Total dose hardness:
- >100 krad (Si), depending upon space mission
• Excellent Single Event Effects:
- SELTH LET: > 80 MeV/mg/cm2
- SEUTH LET (read mode): >80 Mev/mg/cm2
• Package:
- 32 pin RAD-PAK® flat pack
- Weight - 6.0 grams
• Fast access time:
- 120, 150, 200 ns (max) times available
• Low power consumption:
- Active mode: 50 mW/MHz (typ)
- Standby mode: 5W (typ)
• High speed page and word programming:
- Page programming time: 14 sec (typ)
• Programming power supply:
- VPP = 12.5 V ± 0.3 V
• One-time Programmable
• Pin Arrangement
- JEDEC standard byte-wide EPROM
- Flash memory and mask ROM compatible

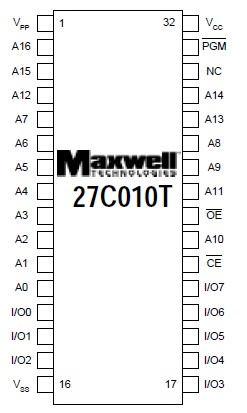

27C010T Connection Diagram
27C010T
PDF/DataSheet Download
- Datasheet: 27C010T
- File Size: 212733 KB
- Manufacturer: MAXWELL [Maxwell Technologies]
- Click here to Download
- ·27C010
- ATMEL [ATMEL Corporation]
- 1 Megabit 128K x 8 OTP CMOS EPROM
- 120726 KB
- ·27C010TRPFB-12
- MAXWELL [Maxwell Technologies]
- 1 Megabit (128K x 8-Bit) - OTP EPROM
- 212733 KB
- ·27C010TRPFB-15
- MAXWELL [Maxwell Technologies]
- 1 Megabit (128K x 8-Bit) - OTP EPROM
- 212733 KB
- ·27C010TRPFB-20
- MAXWELL [Maxwell Technologies]
- 1 Megabit (128K x 8-Bit) - OTP EPROM
- 212733 KB
- ·27C010TRPFE-12
- MAXWELL [Maxwell Technologies]
- 1 Megabit (128K x 8-Bit) - OTP EPROM
- 212733 KB
- ·27C010TRPFE-15
- MAXWELL [Maxwell Technologies]
- 1 Megabit (128K x 8-Bit) - OTP EPROM
- 212733 KB
- ·27C010TRPFE-20
- MAXWELL [Maxwell Technologies]
- 1 Megabit (128K x 8-Bit) - OTP EPROM
- 212733 KB
- ·27C010TRPFI-12
- MAXWELL [Maxwell Technologies]
- 1 Megabit (128K x 8-Bit) - OTP EPROM
- 212733 KB
27C010T Relative Products
27C010
lntel's 27C010 is a 5V only, 1,048,576-bit, erasable programmable read only memory, organized. as 129,536 words of 8 bits. It is pin compatible with lower density DIP EPROMs (JEDEC) and provides for simple upgrades to 8 Mbits in the future in both- DIP and P...
27A2029-0A2
FERRITE CYLINDER CLAMP ON
27A2024-0A2
SPLIT FERRITE CORE W/ RND CABLE
279X
TRANSFORMR 2 FILMNT 425VCT 186VA
2798A

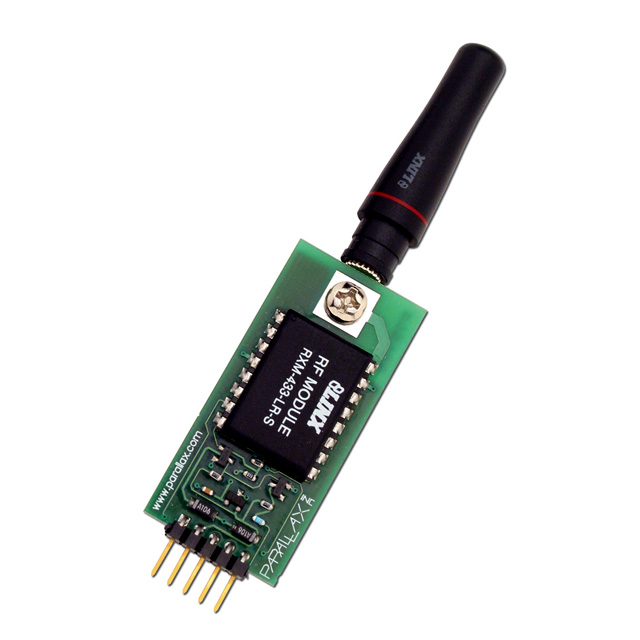

27981
