28C16A

Features:

•Fast Read Access Time-150 ns
•CMOS Technology for Low Power Dissipation
-30 mA Active
-100 µA Standby
•Fast Byte Write Time-200 µs or 1 ms
•Data Retention >200 years
•High Endurance - Minimum 10⁴ Erase/Write Cycles
•Automatic Write Operation
-Internal Control Timer
-Auto-Clear Before Write Operation
-On-Chip Address and Data Latches
•Data</a> polling
•Chip Clear Operation
•Enhanced Data Protection
-V_CC Detector
-Pulse Filter
-Write Inhibit
•Electronic Signature for Device Identification
•5-Volt-Only Operation
•Organized 2Kx8 JEDEC Standard Pinout
•24-pin Dual-In-Line Package
•32-pin PLCC Package
•28-pin Thin Small Outline Package (TSOP) 8x20mm
•28-pin Very Small Outline Package (VSOP)  8x13.4mm
•Available for Extended Temperature Ranges:
-Commercial: 0˚C to +70˚C
-Industrial:  -40˚C to +85˚C

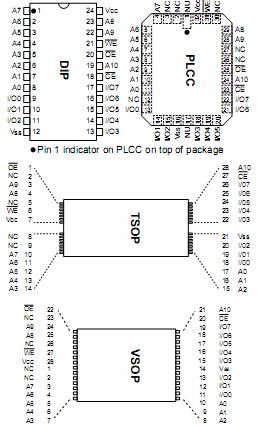

Pinout




Specifications

VCC and input voltages w.r.t. V_SS.......-0.6V to + 6.25V
Voltage on OE</a> w.r.t. V_SS................-0.6V to +13.5V
Voltage on A9 w.r.t. V_SS......................-0.6V to +13.5V
Output Voltage w.r.t. V_SS................-0.6V to VCC+0.6V
Storage temperature..........................-65˚C to +125˚C
Ambient temp. with power applied.......-50˚C to +95˚C


Description

The Microchip Technology Inc. 28C16A is a CMOS 16K non-volatile electrically Erasable PROM.  The 28C16A is accessed like a static RAM for the read or write cycles without the need of external components.  Dur- ing a "byte write", the address and data are latched internally, freeing the microprocessor address and data bus for other operations.  Following the initiation of write cycle, the device will go to a busy state and auto-matically clear and write the latched data using an internal control timer.  To determine when a write cycle is complete, the 28C16A uses Data</a> polling.  Data</a> poll-ing allows the user to read the location last written to when the write operation is complete.  CMOS design and processing enables this part to be used in systems where reduced power consumption and reliability are required.  A complete family of packages is offered to provide the utmost flexibility in applications.
