General Description
29372 General Description
The MIC2937A family are "bulletproof" efficient voltage regulators with very low dropout voltage (typically 40mV at light loads and 300mV at 500mA), and very low quiescent current (160µA typical). The quiescent current of the MIC2937A increases only slightly in dropout, thus prolonging battery life. Key MIC2937A features include protection against reversed battery, fold-back current limiting, and automotive "load dump"protection (60V positive transient).
The MIC2937 is available in several configurations. The MIC2937A-xx devices are three pin fixed voltage regulators with 3.3V, 5V, and 12V outputs available. The MIC29371 is a fixed regulator offering logic compatible ON/OFF switching input and an error flag output. This flag may also be used as a power-on reset signal. A logic-compatible shutdown input is provided on the adjustable MIC29372, which enables the regulator to be switched on and off.
29372 Maximum Ratings
Power Dissipation (Note 1)..............Internally Limited
Lead Temperature (Soldering, 5 seconds)........260°C
Storage Temperature Range.........65°C to +150°C
Operating Junction Temperature Range
......................................................40°C to +125°C
TO-220 JC......................................................2.5°C/W
TO-263 JC......................................................2.5°C/W
Input Supply Voltage...............................20V to +60V
Operating Input Supply Voltage...................2V† to 26V
Adjust Input Voltage (Notes 9 and 10)
...............................................................1.5V to +26V
Shutdown Input Voltage.........................0.3V to +30V
Error Comparator Output Voltage..........0.3V to +30V
Lead Temperature (Soldering, 5 seconds)........260°C
Storage Temperature Range.........65°C to +150°C
Operating Junction Temperature Range
......................................................40°C to +125°C
TO-220 JC......................................................2.5°C/W
TO-263 JC......................................................2.5°C/W
Input Supply Voltage...............................20V to +60V
Operating Input Supply Voltage...................2V† to 26V
Adjust Input Voltage (Notes 9 and 10)
...............................................................1.5V to +26V
Shutdown Input Voltage.........................0.3V to +30V
Error Comparator Output Voltage..........0.3V to +30V
29372 Features
•High output voltage accuracy
•Guaranteed 750mA output
•Low quiescent current
•Low dropout voltage
•Extremely tight load and line regulation
•Very low temperature coefficient
•Current and thermal limiting
•Input can withstand 20V reverse battery and +60V positive transients
•Error flag warns of output dropout
•Logic-controlled electronic shutdown
•Output programmable from 1.24V to 26V(MIC29372)
•Available in TO-220, TO-263, TO-220-5, and TO-263-5
packages.
•Guaranteed 750mA output
•Low quiescent current
•Low dropout voltage
•Extremely tight load and line regulation
•Very low temperature coefficient
•Current and thermal limiting
•Input can withstand 20V reverse battery and +60V positive transients
•Error flag warns of output dropout
•Logic-controlled electronic shutdown
•Output programmable from 1.24V to 26V(MIC29372)
•Available in TO-220, TO-263, TO-220-5, and TO-263-5
packages.
29372 Typical Application
•Battery Powered Equipment
•Cellular Telephones
•Laptop, Notebook, and Palmtop Computers
•PCMCIA VCC and VPP Regulation/Switching
•Bar Code Scanners
•Automotive Electronics
•SMPS Post-Regulator/ DC to DC Modules
•High Efficiency Linear Power Supplies
•Cellular Telephones
•Laptop, Notebook, and Palmtop Computers
•PCMCIA VCC and VPP Regulation/Switching
•Bar Code Scanners
•Automotive Electronics
•SMPS Post-Regulator/ DC to DC Modules
•High Efficiency Linear Power Supplies
29372 Connection Diagram
2931-150
PDF/DataSheet Download
- Datasheet: 2931-150
- File Size: 97956 KB
- Manufacturer: ADPOW
- Click here to Download
- ·2931AM
- NSC [National Semiconductor]
- Series Low Dropout Regulators
- 370433 KB
- ·2936
- Allegro
- 3-PHASE BRUSHLESS DC MOTOR CONTROLLER/DRIVERS
- 119167 KB
- ·2936-120
- ALLEGRO [Allegro MicroSystems]
- 3-PHASE BRUSHLESS DC MOTOR CONTROLLER/DRIVER
- 217058 KB
- ·2936-120_02
- ALLEGRO
- 10 AMP LOW PROFILE POWER RELAY
- 150377 KB
- ·293D
- VISAY [Vishay Siliconix]
- Solid Tantalum Chip Capacitors TANTAMOUNT, Commercial, Surface Mount
- 164410 KB
- ·293D107X0010D2T
- VISAY [Vishay Siliconix]
- Solid Tantalum Chip Capacitors TANTAMOUNT, Commercial, Surface Mount
- 164410 KB
- ·293D107X0010D2W
- VISAY [Vishay Siliconix]
- Solid Tantalum Chip Capacitors TANTAMOUNT, Commercial, Surface Mount
- 164410 KB
- ·293D107X5010D2T
- VISAY [Vishay Siliconix]
- Solid Tantalum Chip Capacitors TANTAMOUNT, Commercial, Surface Mount
- 164410 KB
29372 Relative Products
29371
The MIC2937A family are "bulletproof" efficient voltage regulators with very low dropout voltage (typically 40mV at light loads and 300mV at 500mA), and very low quiescent current (160µA typical). The quiescent current of the MIC2937A increases only sl...
2937
LAMP SOCKET WEDGE BASE 5MM
2936-120
Combining logic and power, the UDN2936W-120 provides com-mutation and drive for three-phase brushless dc motors. Each of the three outputs are rated at 45 V and ±2 A (±3 A peak), and include internal ground clamp and flyback diodes. 2936-120 also features in...
2936
Combining logic and power, the UDN2936W and UDN2936W-120 provide commutation and drive for three-phase brushless dc motors. Each of the three outputs are rated at 45 V and ±2 A (±3 A peak), and include internal ground clamp and flyback diodes. These drivers ...

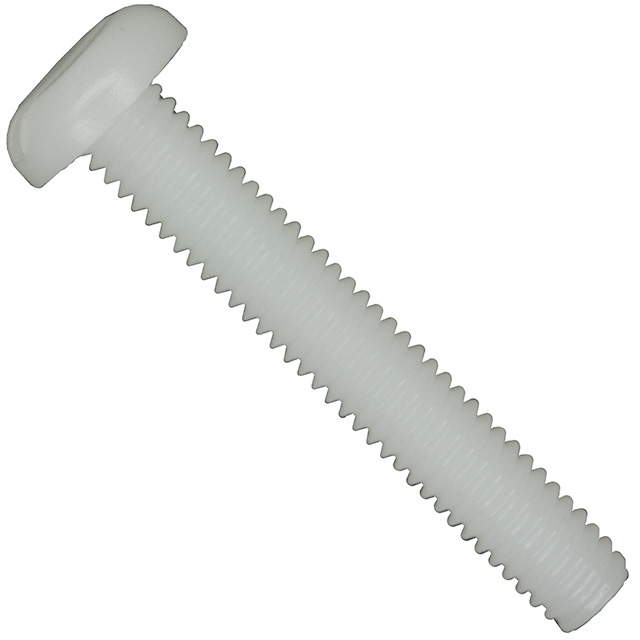

29358
SCREW NYLON M4 THR 25MM

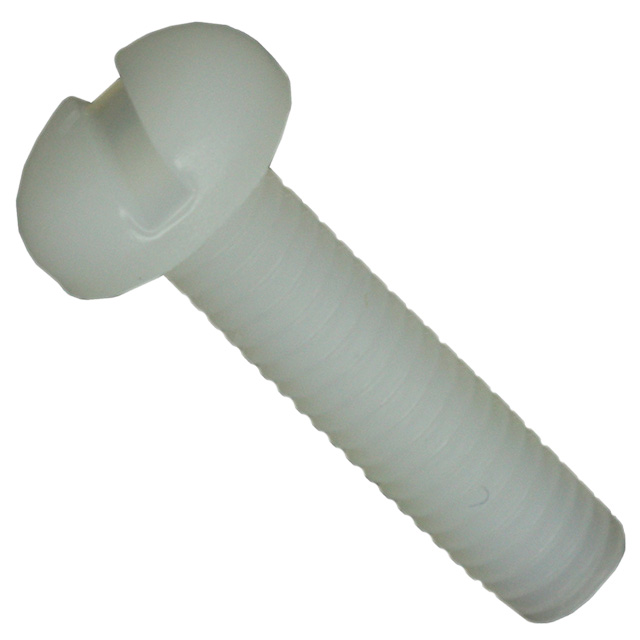

29356
