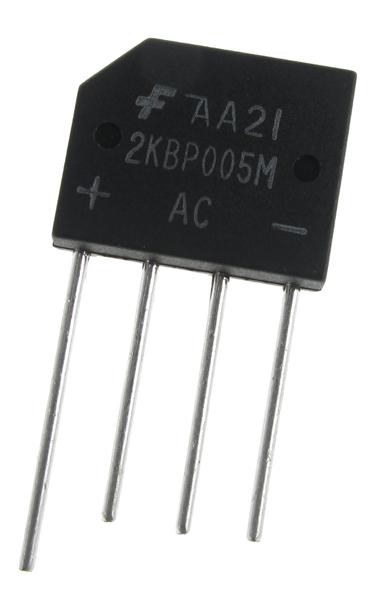

Purchase 2KBP005M, In-stock 2KBP005M From SeekIC.
MFG:Vishay Package Cooled:KBP2 D/C:2007
- Table of contents:
2KBP005M
-
Suppliers
DataSheet
General Description
2KBP005M Maximum Ratings
| SYMBOLS | 2KBP 005M 3N253 |
2KBP 01M 3N254 |
2KBP 02M 3N255 |
2KBP 04M 3N256 |
2KBP 06M 3N257 |
2KBP 08M 3N258 |
2KBP 10M 3N259 |
UNITS | |
| * Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
| * Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | Volts |
| * Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
| * Maximum average forward output rectified current at TA=55°C |
I(AV) | 2.0 | Amps | ||||||
| * Peak forward surge current single half sine-wave superimposed on rated load (JEDEC Method)TJ=150°C |
IFSM | 60.0 | Amps | ||||||
| Rating for fusing (t < 8.3ms) | I2 t |
15.0 | A sec | ||||||
| * Maximum instantaneous forward voltage drop per leg at 3.14A |
VF | 1.1 | Volts | ||||||
| * Maximum DC reverse current TA=25°C at rated DC blocking voltage per leg TA=125°C |
IR | 5.0 500.0 |
A | ||||||
| Typical junction capacitance per leg (NOTE 1) | CJ | 25.0 | pF | ||||||
| Typical thermal resistanceper leg(NOTE 2) | RJA RJL |
30.0 11.0 |
°C/W | ||||||
| * Operating junction and storage temperature range | TJ, TSTG | -55 to +165 | °C | ||||||
2KBP005M Features
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
This series is UL listed under the Recognized Component Index, file number E54214
Glass passivated chip junctions
Typical IR less than 0.1A
High case dielectric strength
Ideal for printed circuit boards
High temperature soldering guaranteed:260°C/10 seconds at 5 lbs.(2.3kg) tension
This series is UL listed under the Recognized Component Index, file number E54214
Glass passivated chip junctions
Typical IR less than 0.1A
High case dielectric strength
Ideal for printed circuit boards
High temperature soldering guaranteed:260°C/10 seconds at 5 lbs.(2.3kg) tension
2KBP005M Connection Diagram
