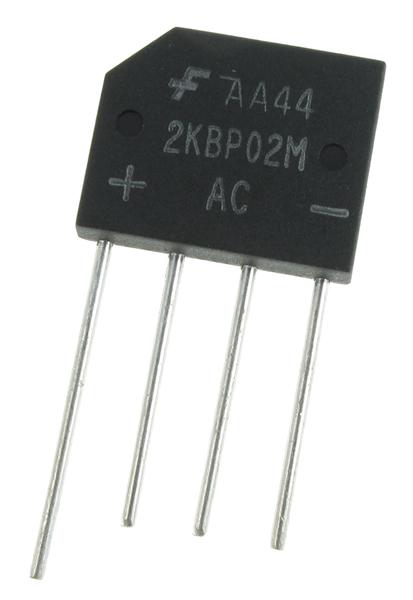

2KBP02M

Product : Single Phase Bridge
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Packaging : Tube
Forward Voltage Drop : 1.1 V
Maximum Reverse Leakage Current : 5 uA
Peak Reverse Voltage : 200 V
Maximum RMS Reverse Voltage : 140 V
Length : 15.24 mm
Width : 5.08 mm
Forward Continuous Current : 2 A
Max Surge Current : 60 A
Package / Case : SIP-4
Height : 12.7 mm
Power Dissipation : 4.7 W


Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
2KBP02M	Full Production	RoHS Compliant	$0.257	KBPM	4	RAIL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Description

2KBP02M 2KBP005M thru 2KBP10M datasheet




Parameters:

Technical/Catalog Information	2KBP02M
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Single Phase
Package / Case	KBPM
Packaging	Tube
Reverse Recovery Time (trr)	-
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)	2A
Voltage - Peak Reverse (Max)	200V
Mounting Type	Through Hole
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2KBP02M 2KBP02M 2KBP02MFS ND 2KBP02MFSND 2KBP02MFS
